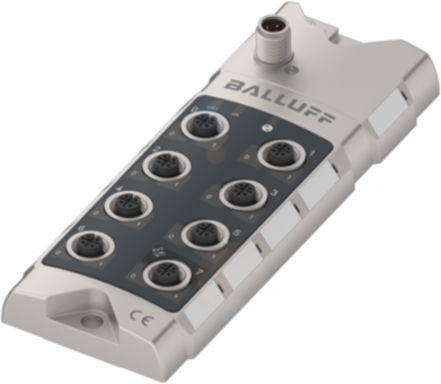

Balluff BNI IOL-302-S02-Z012 IO-Link Sensor/Actuator Hub, 16 Digital Outputs, IP67, 68 x 31.8 x 181.5 mm
- MPN: BNI IOL-302-S02-Z012
- PPN: BAL-BNI00CN
CAD
$449.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
IO-Link Sensor/Actuator Hub, 16 Digital Outputs, IP67, 68 x 31.8 x 181.5 mm
Documentation & Downloads
Specifications
Additional
- Digital outputs
- 16x PNP
- Operating voltage
- 18...30.2 VDC
- Ambient temperature
- -5...55 °C
- Current sum US, sensor
- 4 A
- Digital inputs
- 16x PNP, Type 3
- Connection slots
- 8x M12x1-Female, 5-pin, A-coded
- Process data out
- 2 bytes
- Data transfer rate
- COM2 (38.4 kBaud)
- Housing material
- Zinc, Die casting
- Diagnostics
- yes
- Country of Origin
- Hungary
Switching current16x 200 mA
IP ratingIP67, when threaded in
Current sum UA, actuator4 A
Process data cycle min.6.2 ms
Dimensions68 x 31.8 x 181.5 mm
Connection (COM 1)M12x1-Male, 4-pin, A-coded
Configurable inputs/outputsyes
Process data in8 bytes
Extension portyes
InterfaceIO-Link 1.1
