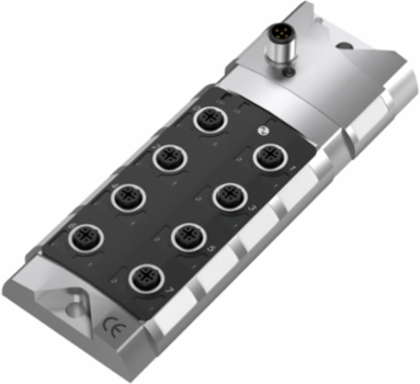

Balluff BNI IOL-302-000-Z012 IO-Link Sensor/Actuator Hub, 16 Digital Inputs, IP67 Rating, Zinc Housing

IO-Link Sensor/Actuator Hub, 16 Digital Inputs, IP67 Rating, Zinc Housing
  • MPN: BNI IOL-302-000-Z012
  • PPN: BAL-BNI003U

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$432.03/ EA

Specifications

Specifications

Country of Origin
China
Operating voltage Ub
18...30.2 VDC
Connection slots
8x M12x1-Female, 5-pin, A-coded
Digital outputs
16x PNP
Current sum US, sensor
4 A
Switching current
16x 500 mA
Dimension
68 x 31.8 x 181.5 mm
IP rating
IP67, when threaded in
Process data cycle min.
12 ms
Process data out
2 bytes
InterfaceIO-Link 1.0
Connection (COM 1)M12x1-Male, 4-pin, A-coded
Digital inputs16x PNP, Type 2
Configurable inputs/outputsyes
Current sum UA, actuator4 A
Housing materialZinc, Die casting
Ambient temperature-5...70 °C
Data transfer rateCOM2 (38.4 kBaud)
Process data in2 bytes
