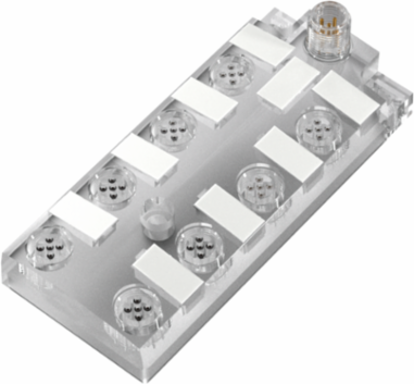

Balluff BNI IOL-104-011-K006 IO-Link Sensor/Actuator Hub, 8x M12x1-Female Connections, IP67
- MPN: BNI IOL-104-011-K006
- PPN: BAL-BNI00J0
CAD
$316.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
IO-Link Sensor/Actuator Hub, 8x M12x1-Female Connections, IP67
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 18...30.2 VDC |
|---|---|
| Current Sum US, Sensor | 4 A |
| Process Data In | 2 bytes |
| Connection Slots | 8x M12x1-Female, 5-pin, A-coded |
| Dimension | 50 x 30.8 x 115 mm |
| Housing Material | PA, Transparent |
| Interface | IO-Link 1.1 |
| Country of Origin | Hungary |
| Process Data Cycle Min. | 3.5 ms |
|---|---|
| Data Transfer Rate | COM2 (38.4 kBaud) |
| Digital Inputs | 16x PNP, Type 3 |
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded |
| Ambient Temperature | -5...55 C |
| IP Rating | IP67, when threaded in |
| Configurable Inputs/Outputs | no |
