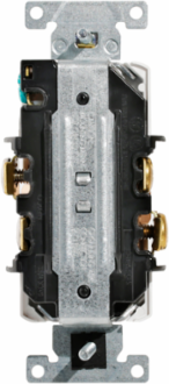

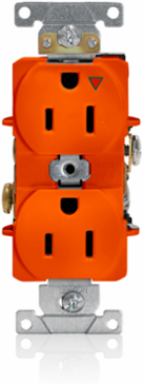

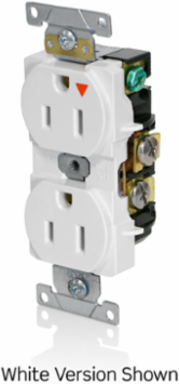

Leviton 5262-IG 15 Amp Isolated Ground Duplex Receptacle, Industrial Grade, NEMA 5-15R, Orange
- MPN: 5262-IG
- UPC: 078477052440
- PPN: LEV-5262-IG
CAD
$15.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face,15 Amp, 125 Volt, Back and Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Orange
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| UL Fed Spec WC-596 | File E13399 |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| Warranty | 10-Year Limited |
Material Specifications
| Body Material | PBT Polyester Blend |
|---|---|
| Face Material | PBT Polyester Blend |
| Line Contacts | 0.030" Phosphor Bronze |
| Terminal Screws | #8 Triple-Drive Brass |
| Color | Orange |
|---|---|
| Grounding Screw | #8 Hex Head, Triple-Drive Brass |
| Strap Material | Steel (Galvanized G60) |
Mechanical Specifications
| Product ID | Ratings are permanently part of devices |
|---|---|
| Terminal Accom. | #14-#10 AWG |
| Termination | Back and Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Silver-Neutral, Green-Ground |
Product Features
| Device Type | Duplex Receptacle Outlet |
|---|---|
| Function | Isolated Ground |
| Feature | Smooth Face |
|---|---|
| Grade | Heavy-Duty Industrial Specification Grade |
Environmental Specifications
| Flammability | Rated V-0 per UL 94 |
|---|
| Operating Temperature | -40°C to 75°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C temperature rise at full rated current |
| Wire | 3 |
| Dielectric Voltage | Withstands 3000 V min |
|---|---|
| Pole | 2 |
| Voltage | 125 VAC |
AC Horsepower Ratings
| At Rated Voltage | 1/2 HP |
|---|
