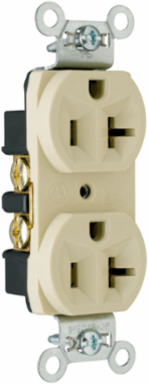

Pass & Seymour CRB5362I 20A 125V Commercial Duplex Receptacle, Ivory, 0.78 Inch Depth
- MPN: CRB5362I
- UPC: 785007210224
- PPN: P-S-CRB5362I
CAD
$9.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Commercial Duplex Receptacle, Ivory, 0.78 Inch Depth
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
- Terminal compartments isolated from each other for positive conductor containment.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Height
- 2.635 in
- Finish
- Matte
- Country of Origin
- Mexico
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Wire Connection Type
- Internal Pressure Plates
ColorIvory
Width1.322 in
Product LinePass & Seymour
Amperage20.0 A
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles2.0
Number of PolesDouble Pole
NEMA Configuration Code5-20R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
FeaturesSingle Piece Plated Steel Mounting Strap
