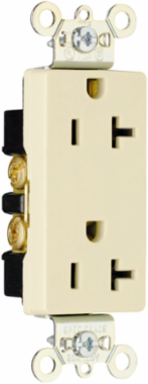

Pass & Seymour 26352I 20A 125V Heavy Duty Decorator Duplex Receptacle, Ivory, 1.322 Inch Width
- MPN: 26352I
- UPC: 785007785388
- PPN: P-S-26352I
CAD
$10.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Heavy Duty Decorator Duplex Receptacle, Ivory, 1.322 Inch Width
Features
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- Heavy-duty compact design for easier installation and long lasting performance.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face.
- Terminal compartments isolated from each other for positive conductor containment.
- All devices fit standard #26 opening wall plate.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
| Depth | 0.78 in |
|---|---|
| Color | Ivory |
| Product Line | Pass & Seymour |
| Country of Origin | Mexico |
| Amperage | 20.0 A |
| Standard | FEDSPEC |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Features | Decorator Style |
| Outlet Type | Straight Blade |
| Application Sector | Commercial |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Wire Connection Type | Internal Pressure Plates |
| Features | Single Piece Plated Steel Mounting Strap |
| Height | 2.635 in |
|---|---|
| Width | 1.322 in |
| Special Features | Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body. One-piece, brass, triple-wipe power contacts for lasting retention. Heavy-duty compact design for easier installation and long lasting performance. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. Terminal compartments isolated from each other for positive conductor containment. Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire. All devices fit standard #26 opening wall plate. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground. |
| Standard | UL498 |
| Voltage | 125.0 V |
| Standard | cUL CSA |
| Indoor/Outdoor | Indoor |
| Wall Plate Included | No |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| NEMA Configuration Code | 5-20R |
| Wire Connection Type | Screw Terminals |
| Dielectric Strength | Withstands 2000V minimum |
| Environmental Conditions | Flammability: UL94 V2 |
