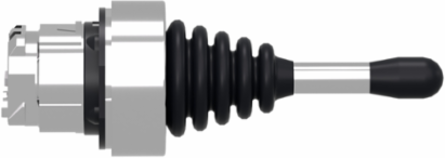

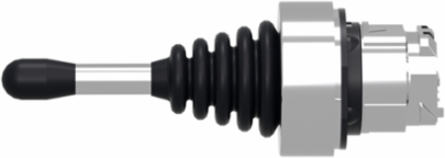

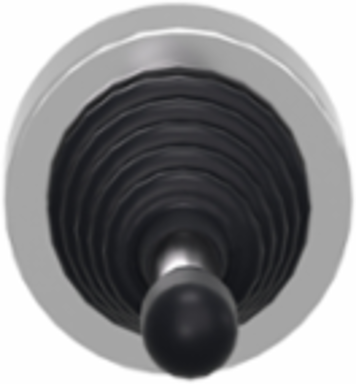

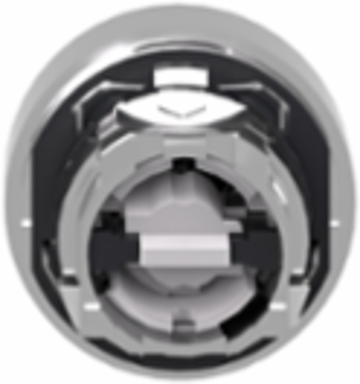

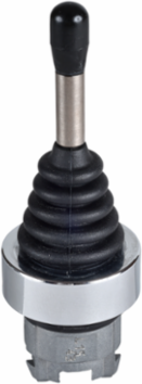

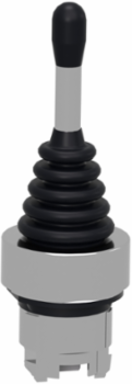

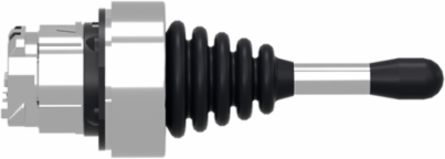

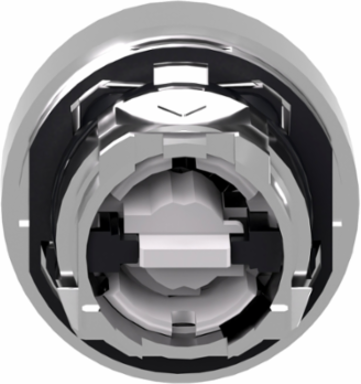

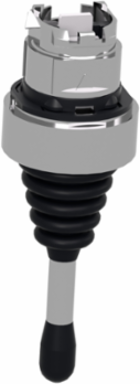

Schneider Electric ZD4PA24 Harmony XB4 Joystick Controller Head, 22mm, 4 Directions, IP66
- MPN: ZD4PA24
- PPN: SCH-ZD4PA24
CAD
$217.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This head with operating shaft operates with 4 direction spring-return-to-zero-position mechanism and provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers. It also provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for joystick controller
- Operator Direction Information
- 4 directions
Range Of ProductHarmony XB4
Operator Profile54 mm long operating shaft
Type Of Operatorto zero position spring return
Shape Of Signaling Unit Headround
Device Short NameZB4
Complementary
- Operator Position Information
- 5 positions
- Net Weight
- 0.022 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
Mechanical Durability1000000 cycles
Device Presentationbasic element
Environment
- Product Certifications
- CSA || LROS (Lloyds register of shipping) || GL || BV || UL listed || DNV
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- EN/IEC 60947-5-5 || EN/IEC 60947-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-1
- Electrical Shock Protection Class
- class I IEC 60536
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529
Ik Degree Of ProtectionIK03 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
