Schneider Electric XD2GA8241 JOYSTICK SWITCH 600V
- MPN: XD2GA8241
- PPN: SCH-XD2GA8241
CAD
$423.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

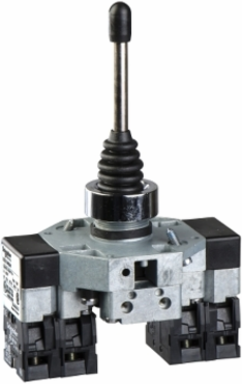

The Harmony XB5 series XD2GA8241 joystick controller features a standard 22
mm mounting diameter, making it a drop-in replacement for existing operator panels, consoles, or Schneider XAL, XAM, and XAP enclosures. This standard cutout compatibility eliminates the need for frustrating panel modifications, allowing maintenance electricians to swap out aging control components quickly and minimize machinery downtime.
Features
- This complete joystick controller features a standard 22mm mounting diameter, making it an effortless drop-in replacement for any Harmony XB5 setup or generic 22mm panel matrix. It integrates flawlessly into Schneider XAL, XAM, and XAP industrial enclosures, eliminating the need for custom fabrication or panel resizing during field retrofits.
- Built to thrive under severe operating conditions, this unit features a robust chromium-plated metal bezel and boasts a rugged IP66 environmental rating to keep out fine dust and high-pressure water jets. With a proven mechanical and electrical lifespan of 1,000,000 cycles, along with 5 gn vibration and 20 gn shock resistance, it eliminates premature switch failures in demanding material handling equipment, fork-lift trucks, and elevating work platforms.
- Engineered for accurate human-machine interface control, this joystick operates across 2 distinct directions with 2 notches per direction and an automated spring-return to the zero position. The slow-break mechanism controls 2 NO (Normally Open) contacts, ensuring predictable actuation and tactile feedback that prevents accidental operator triggering during complex machine handling maneuvers.
- This heavy-duty controller is fully optimized for industrial power requirements, carrying a 500V rated insulation voltage per IEC 60947-1 and a 600V rating under UL 508 and CSA C22.2 No 14 standards. With an operational current rating of 3A at 240VAC (A300) and 0.27A at 250VDC (Q300), it safely handles pilot device load switching while integrating with 10A gG Neozed cartridge short-circuit protection.
- This versatile unit comes equipped with captive screw clamp terminals that securely house wiring from 1 x 0.5 mm2 up to 2 x 1.5 mm2 with or without cable ends. For facilities utilizing rapid-assembly modular systems, it also supports standard 6.3 mm Faston connectors, substantially accelerating installation times and reducing labor costs during massive panel builds.
- Designed to perform flawlessly where generic switches fail, it features a broad operating temperature range of -25 C to 70 C (-13 F to 158 F) and a protective TC treatment for humidity control. This ensures reliable, crisp switch responsiveness without sticking or freezing, whether deployed in sub-zero cold storage facilities or exposed to scorching outdoor crane applications.
Documentation & Downloads
Specifications
Additional
- Electrical Durability
- 1,000,000 cycles AC-15(230 V, 127 V, 24-48 V), DC-13 (24 V, 48 V, 120 V), operating rate <3600 cyc/h, load factor 0.5
- Rated Insulation Voltage
- 600 V
- Short-circuit Protection
- 10 A gG (gl) Neozed cartridge fuse
- Mechanical Durability
- 1,000,000 cycles
- Contact Code Designation
- A600-Q600
- Notch per Direction
- 2
- Operator Position Information
- All positions
- Fixing Center
- 90 x 90 mm
- Depth
- 60 mm
- Connections
- Captive screw clamp terminals 1 x 0.5 mm2, 2 x 1.5 mm2, Faston connectors 6.3 mm
- Protective Treatment
- TC
- Vibration Resistance
- 5 gn (40-500 Hz)
- Ambient Air Temperature for Operation
- -25 to 70 C
- Electrical Reliability
- < 10 6
- Product Certifications
- CSA, Lloyds Register of Shipping
- Product Type
- Complete joystick controller
Rated Operational Current0.27 A at 250 V DC-13, 3 A at 240 V AC-15
Rated Impulse Withstand Voltage6 kV
Overvoltage CategoryClass I
Contacts Type and Composition2 NO for slow-break
Operator Direction Information2 directions
Returnto 0 position
Mounting Diameter22 mm
Height145 mm
Net Weight0.5 kg
Bezel MaterialChromium plated metal
IP Degree of ProtectionIP66
Shock Resistance20 gn
Ambient Air Temperature for Storage-40 to 70 C
StandardsIEC 60947-5-1
Range of ProductHarmony XB5
