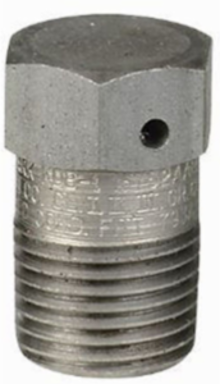

Killark KDB-1 Stainless Steel Drain/Breather 1 2 Inch NPT Thread Size, Explosionproof Rated
- MPN: KDB-1
- UPC: 783936367002
- PPN: HBL-KDB-1
- UNSPSC: 39121321
CAD
$73.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
KDB/KB Series - Stainless Steel Drain/Breather - Thread Size ½ NPT
Features
- Suitable for Explosionproof and Dust-Ignitionproof environments.
- Stainless Steel
- The drain and breather has a 1/2" NPT thread size.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Hub Size | 1/2" |
| Application | When installed in the top of an enclosure, these fittings act as breathers which allows air flow through the enclosure. Bottom installations permit water from condensation to drain from the enclosure continuously. |
| Size | 2 in x 1 in x 1 in |
| Type | Drain & Breather |
| Width | 1 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 1/2"NPT DRAIN/BREATHER |
| Harmonization Code | 7326908688 |
| Lead Time | 20 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D237 |
| Gross Weight with Packaging | 0.17 |
| Material | Stainless Steel, Type 303 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.700 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| NAICS Code | 3359326103 |
| Dimensions | 2 in x 1 in x 1 in |
|---|---|
| Height | 1 in |
| Length | 2 in |
| Color | Gray |
| Special Features | The drain and breather has a 1/2" NPT thread size. |
| Weight | 0.17 lb. |
| Nema Rating | 3, 4, 4X |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11716 |
| UL File Number | E10514 |
| Series | KDB Series |
| BOX SIZE | 4.375x6.375x5.875 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936367002 |
| Master Pack Description | Each |
