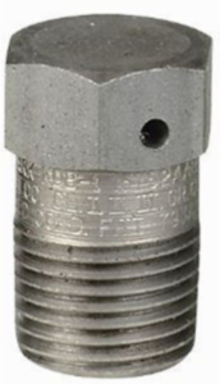

Killark KDB-375CEN Aluminum ATEX & IECEx Certified Drain/Breather 3/8 Inch NPT Thread Size
- MPN: KDB-375CEN
- UPC: 783936076058
- PPN: HBL-KDB-375CEN
- UNSPSC: 39121321
CAD
$305.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The KB & KDB drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures When installed in the top of an enclosure it acts a s a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are UL / cCSAus / FM certified for Class I Class I Zone 1 & 2 Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex db IP66 with suffix “CEN”. Review each part for hazardous rating suitability and notified body. The KB & KDB are offered in aluminum, 300 series stainless steel and 316 stainless steel. Thread sizes ¼”to 1/2” NPT and Metric sizes M16 & M20.
Features
- Suitable for Explosionproof and Dust-Ignitionproof environments.
- Copper-free aluminum.
- Light Blue Anodized Finish.
- The drain and breather has a 3/8" NPT thread size.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 3/8"
- Application
- When installed in the top of an enclosure, these fittings act as breathers which allows air flow through the enclosure. Bottom installations permit water from condensation to drain from the enclosure continuously.
- Size
- 2 in x 1 in x 1 in
- Type
- Drain & Breather
- Nema Rating
- 3, 4, 4X
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- KDB Series
- BOX SIZE
- 5.630x5.560x4.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936076058
- Master Pack Description
- Each
Dimensions2 in x 1 in x 1 in
Height1 in
Length2 in
ColorGray
Special FeaturesThe drain and breather has a 3/8" NPT thread size.
Width1 in
ARRA CompliantContact Manufacturer
Description - Invoice3/8NPT DRAIN BREATHER ALUM ATEX IEC EX
Harmonization Code7616995190
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging0.125
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
NAICS Code3353133104
Certifications
- EU RoHS Indicator
- Contact Manufacturer
