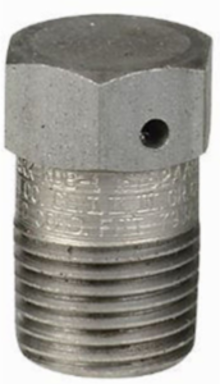

Killark KDB-250 Aluminum Drain/Breather 1/4 Inch NPT, 2 Inch Length, Class I Hazardous Rating
- MPN: KDB-250
- UPC: 783936012629
- PPN: HBL-KDB-250
- UNSPSC: 39121321
CAD
$161.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The KB & KDB drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures When installed in the top of an enclosure it acts a s a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are UL / cCSAus / FM certified for Class I Class I Zone 1 & 2 Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex db IP66 with suffix “CEN”. Review each part for hazardous rating suitability and notified body. The KB & KDB are offered in aluminum, 300 series stainless steel and 316 stainless steel. Thread sizes ¼”to 1/2” NPT and Metric sizes M16 & M20.
Features
- Suitable for Explosionproof and Dust-Ignitionproof environments.
- Copper-free aluminum.
- Light Blue Anodized Finish.
- The drain and breather has a 1/4" NPT thread size.
Specifications
Key Specifications
- Size
- 2 in x 1 in x 1 in
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 1/4"
- Width
- 1 in
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- KDB Series
- BOX SIZE
- 5.630x5.560x4.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936012629
- Item Package Type
- K-PAK
- NAICS Code
- 3359326103
Special FeaturesThe drain and breather has a 1/4" NPT thread size.
Country of OriginUnited States
Dimensions2 in x 1 in x 1 in
Height1 in
Length2 in
ApplicationWhen installed in the top of an enclosure, these fittings act as breathers which allows air flow through the enclosure. Bottom installations permit water from condensation to drain from the enclosure continuously.
TypeDrain & Breather
Description - Invoice1/4" NPT DRAIN/BREATHER
Harmonization Code7616999999
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging0.17
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
