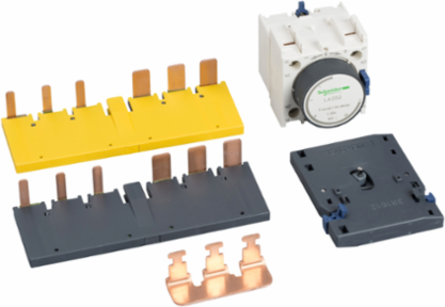

Schneider Electric LAD9SD3 Star Delta Starter Assembly Kit for 3P Contactors LC1D40A-D80A, 30s Timer
- MPN: LAD9SD3
- PPN: SCH-LAD9SD3
CAD
$684.63
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys D mounting kit for star-delta starter assembly, for 3-pole contactors LC1D40A-D80A. For assembling 3 identical contactors horizontally mounted, connection by screw clamp Everlink terminals. It contains a mechanical interlock LAD4CM, power circuit connections, a time delay contact block LADS2 (1-30s). It conforms to RoHS/REACh regulation.
Features
- Specifically engineered for Schneider Electric TeSys D and TeSys Deca contactors (LC1D25 through LC1D38), this dedicated power connection kit guarantees a seamless, drop-in fit. Utilizing OEM-matched hardware eliminates frustrating physical misalignments during panel assembly, allowing control technicians to confidently construct robust wye-delta setups without the hassle of fabricating custom copper busbars.
- Designed for assembling highly efficient star-delta (wye-delta) motor starters, this pre-formed wiring kit removes the tedious guesswork from routing complex 3-phase power circuits. By providing precise, factory-crimped connections, it eliminates the expensive risk of manual wiring faults and ensures a clean, professional-looking electrical enclosure that is exceptionally easy to troubleshoot.
- By enabling a flawless star-delta transition, this connection kit allows high-torque industrial motors to smoothly ramp up to speed while drastically reducing destructive inrush currents. This controlled mechanical acceleration prevents severe voltage drops across your facility's power grid, actively preventing premature wear and extending the lifespan of expensive drive belts, bearings, and gearboxes.
- Manufactured to rigorous Schneider Electric specifications, integrating this genuine LAD9SD3 connector block ensures your custom-built motor starter maintains strict UL and IEC safety compliance. Relying on properly insulated, heavily rated factory conductors prevents dangerous localized overheating and loose connections, guaranteeing your commercial automation systems effortlessly pass strict local electrical code inspections.
Documentation & Downloads
Specifications
Additional
- Poles
- 3P
- Timer Duration
- 1-30 s
- Connection Type
- Screw clamp Everlink terminals
- Net Weight
- 0.38 kg (0.84 lb)
- RoHS Compliance
- Compliant with Exemptions, RoHS, REACh
- Mercury Free
- Yes
- Range
- TeSys, Linergy, TeSys Deca
Product CompatibilityLC1D40A, LC1D50A, LC1D65A, LC1D80A
Mounting TypeHorizontal
Kit CompositionMechanical interlock, set of power connection, time delay contact block LAD S2
Country of OriginCzech Republic
Warranty18 months
Product Or Component Typestater assembly
