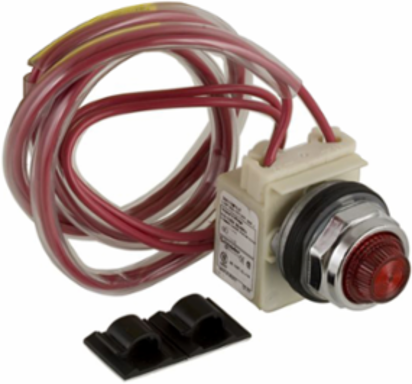

Square D 9999SP28R NEMA Motor Starter Pilot Light Kit 120V AC 60Hz, Red/Green, CSA/UL Recognized
- MPN: 9999SP28R
- UPC: 785901030188
- PPN: SCH-9999SP28R
CAD
$215.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Type S magnetic contactors and starters are for motor control applications. The pilot light kit is for use with Type S contactors and starters and 8903 lighting contactors with a control transformer (Form F4T) with a 120 VAC 60 Hz secobndary. The pilot kit is also used with NEMA Sizes 5-7 contactors and starter and 8903S lighting contactors rated at 100A or more if they have a 120 V 60 Hz coil. The pilot kit comes with a red and a green lens. The pilot kit is UL Component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
Physical Attributes
| Signalling Color | green/red |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Kit Composition | 1 pilot light2 cable clips, 2 instructions, 2 cap |
| Certificate Agency | CSA, UL Recognized |
| Local Publishable Date | 2026-05-08 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Rohs Eur In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Or Component Type | pilot light kit |
| Returnability | Yes |
| Signalling Color | green/red |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531809026 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Product Destination | contactor, starter |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | type S |
| Sustainable Packaging | No |
| [Ue] Rated Operational Voltage | 120 V AC 60 Hz |
| Package Weight(Lbs) | 376.482 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Nema Size | 00, 0, 4, 2, 6, 3, 7, 5, 1 |
| Recycled Metal Content At Cr Level | 0 % |
| Packaging Made With Recycled Cardboard | Yes |
| Nema Degree Of Protection | NEMA 12, NEMA 1, NEMA 4 |
|---|---|
| Take Back | No |
| Eu Rohs Directive | Under investigation |
| Packaging Without Single Use Plastic | Yes |
General Attributes
| Product Or Component Type | pilot light kit |
|---|
| Range Of Product | type S |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
