Square D 9999SA3 Type S Motor Starter & Contactor Kit, NEMA 1/3R/12, 6A 120V AC
- MPN: 9999SA3
- UPC: 785901030171
- PPN: SCH-9999SA3
CAD
$431.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

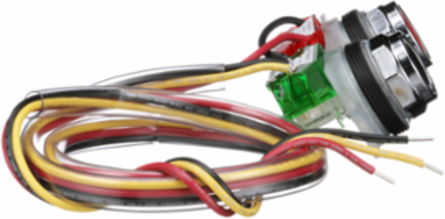

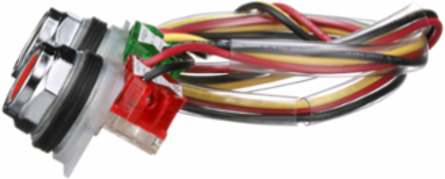

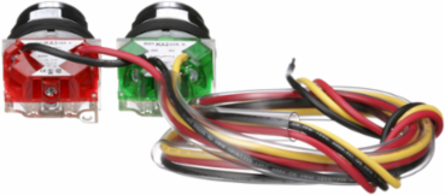

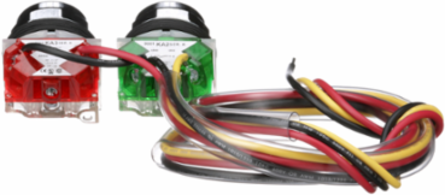

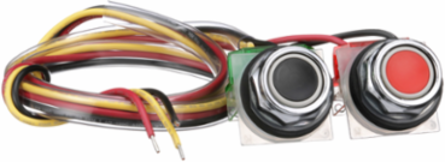

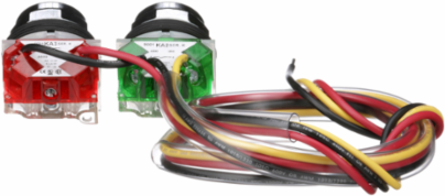

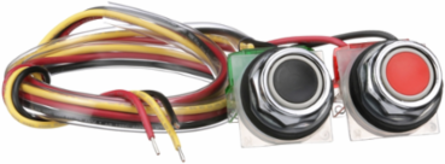

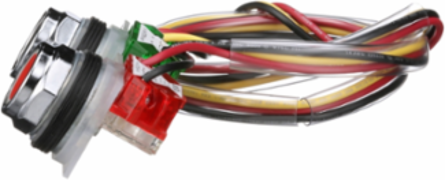

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This Start Stop push button kit is for NEMA size 4 through 7 Type S contactors and starters or 8903SQ through 8903SZ lighting contactors in NEMA 1 enclosure. The push button kit is mounted into the knockout in the enclosure cover. This push button kit is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Complementary Attributes
| Rated Breaking Capacity | 6 A 120 V AC inductive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 50810 A 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC resistive control circuit UL 5080.55 A 250 V DC resistive control circuit UL 508, 0.2 A 600 V DC resistive control circuit UL 508 |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Marking | START-STOP, ON-OFF |
| Certificate Agency | UL Recognized, CSA |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Rohs Eur In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | type S |
| Sustainable Packaging | No |
| Package Weight(Lbs) | 467.2 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Product Destination | contactor, starter |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Mounting Mode | panel-mounted |
| Product Or Component Type | push-button |
| Returnability | Yes |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Nema Size | 2, 0, 6, 4, 5, 3, 7, 00, 1 |
| Recycled Metal Content At Cr Level | 0 % |
| Packaging Made With Recycled Cardboard | Yes |
| Nema Degree Of Protection | NEMA 1, NEMA 3R/12 |
|---|---|
| Take Back | No |
| Eu Rohs Directive | Under investigation |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | push-button |
|---|
| Range Of Product | type S |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
