Schneider Electric LAD91217 TeSys Deca Starter Assembly Kit for 3-Pole Contactors LC1D09-D38
- MPN: LAD91217
- PPN: SCH-LAD91217
CAD
$710.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

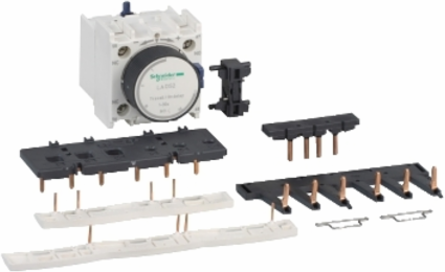

TeSys Deca mounting kit, for star-delta starter assembly with 3-pole contactors LC1D09-D38 (all with the same physical size). For motor applications up to 25kW@400V in delta connection. It contains power circuit connections, screws and clamps for fixing 3 contactors to a plate, a time delay contact block LADS2 (1-30s).
Features
- The Schneider Electric LAD91217 is a specialized mechanical interlocking kit designed to synchronize two TeSys D contactors (LC1D09 through LC1D38). It is the essential hardware required to build a reversing motor starter or a changeover power system, ensuring that both contactors cannot be energized simultaneously, which would cause a catastrophic phase-to-phase short circuit.
- This comprehensive package includes the mechanical interlock block, which physically prevents one contactor from closing if the other is active, along with a set of pre-formed power busbars. These rigid links simplify the complex wiring required for reversing the phases of a 3-phase motor, providing a clean, professional, and error-free installation for Canadian panel builders.
- By utilizing the snap-on mechanical link and the custom-fit busbars, you eliminate the need for manual wire stripping, crimping, and routing between the two contactors. This significantly reduces assembly time in motor control centers (MCCs) and ensures that your reversing circuit is perfectly aligned and electrically sound every time.
- The LAD91217 is engineered to maintain the compact profile of the TeSys D range. It mounts centrally between the two contactors without adding significant width, allowing you to maximize "real estate" in crowded automation cabinets. This high-density design is a major advantage for Canadian industrial projects where enclosure space is at a premium.
- Built to the same rigorous standards as the LC1D contactor line, this interlock kit is designed for millions of mechanical cycles. Whether managing a conveyor, hoist, or pump, the rugged interlocking mechanism ensures consistent safety and performance in demanding Canadian manufacturing, mining, and HVAC environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Kit Composition
- electrical and mechanical interlock, set of power connection, time delay contact block LAD S2
- Local Publishable Date
- 2025-02-26
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LAD9
- Number Of Poles
- 3P
- Product Name
- TeSys Deca
- Range
- TeSys
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Package Weight(Lbs)
- 154.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1904
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeLAD9
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typestarter assembly
Range Of ProductTeSys Deca
Sustainable PackagingYes
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Product CompatibilityLC1D09...D38
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- starter assembly
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC002050
ETIM 9EC002050
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
