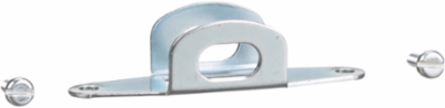

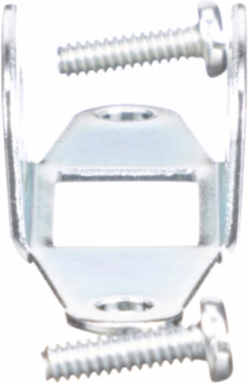

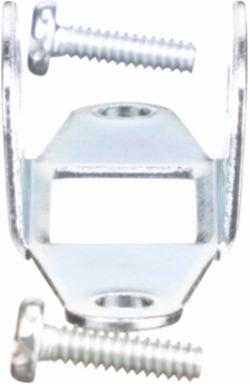

Square D 2510FL1 Manual Starter with Padlock Provision, 2.75 Inch Height, PVC Free
- MPN: 2510FL1
- UPC: 785901554127
- PPN: SCH-2510FL1
CAD
$27.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. The kit provides a provision for a padlock. The kit can be added by mounting it under the cover screws of the NEMA 1 enclosure or the flush plate. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions.
Features
- The 2510FL1 is a dedicated physical lockout-tagout (LOTO) accessory designed to secure Schneider Electric / Square D Type F fractional horsepower manual starters in the "OFF" position. By allowing the use of a standard padlock, it ensures maintenance personnel can safely de-energize equipment and prevent unauthorized restarts, maintaining strict compliance with workplace safety mandates.
- Built with high-quality, corrosion-resistant materials, this padlock attachment is engineered for longevity in demanding commercial and industrial settings. Its rugged design resists mechanical wear and environmental stressors, ensuring that your safety protocols remain functional even in high-traffic or dusty mechanical rooms where lighter plastic alternatives might fail.
- Specifically engineered as a direct-fit accessory for Square D Class 2510 Type F (fractional) manual starters, this attachment eliminates the guesswork of universal LOTO kits. The precision alignment ensures that the padlock shackle cannot be bypassed, providing a reliable mechanical block that is far more secure than makeshift "one-size-fits-all" locking devices.
- The 2510FL1 is designed for rapid field installation without requiring complex disassembly of the starter housing. This allows facility electricians to upgrade existing motor control stations to modern safety standards in minutes, minimizing downtime while instantly enhancing the safety profile of small motor applications like fans, pumps, and blowers.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth0.7 in
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range Of Product
- K, F
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1935
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- padlock attachment
- Sustainable Packaging
- No
- Width Nominal
- 0.7 in
- Package Weight(Lbs)
- 27.216 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Product Destinationmanual starter
ReturnabilityYes
Height Nominal2.75 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- K, F
Product Or Component Typepadlock attachment
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
