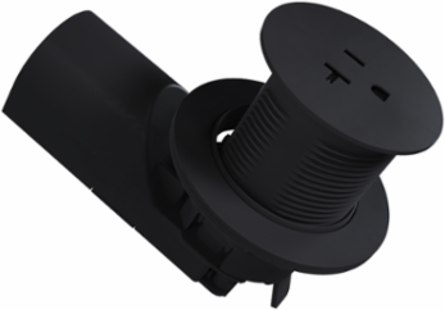

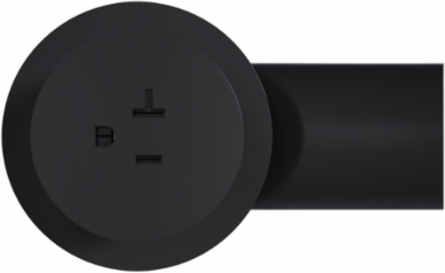

Pass & Seymour CP498TR20BK Kitchen Countertop Outlet, 20A, Matte Black
- MPN: CP498TR20BK
- UPC: 785007461497
- PPN: P-S-CP498TR20BK
CAD
$172.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Kitchen Countertop Outlet is a code-compliant, UL 498-certified solution for kitchen islands and peninsulas, featuring a compact design and quick connection for easy installation. Passing a strict half-gallon spill test, the outlet ensures reliability and performance, offering the utmost safety for homeowners. The outlet can withstand strong wear and tear, with built-in corrosion/chemical resistance, and the surface-mount design makes everyday cleaning easy to help maintain long-term aesthetic. Purchase the outlet with an optional lid, which comes in four cast metal options to match or complement kitchen finishes.
Features

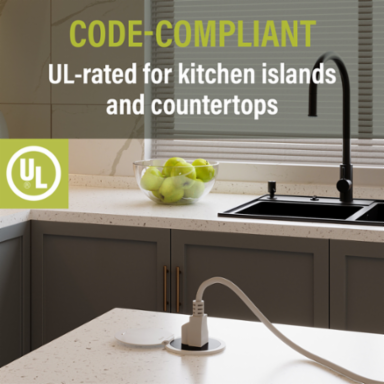

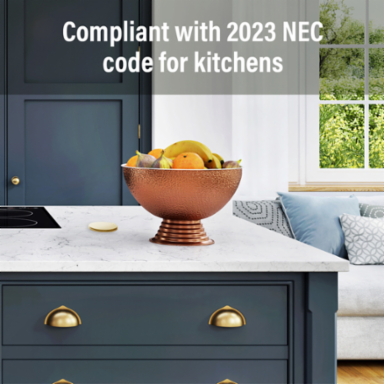

- Code Compliant with NEC 2023 406.5 (E), a standard to be adopted by roughly 50% of US states by the end of 2026
- UL 498 rated for Countertop or Work Surface Assembly, ensuring reliability and performance.

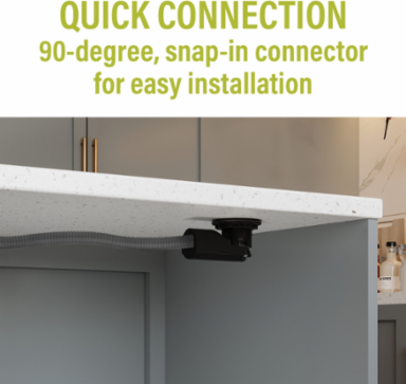

- Features a quick connecting termination tail that is wired above the counter and a hand-turn nut that requires no tools under the counter

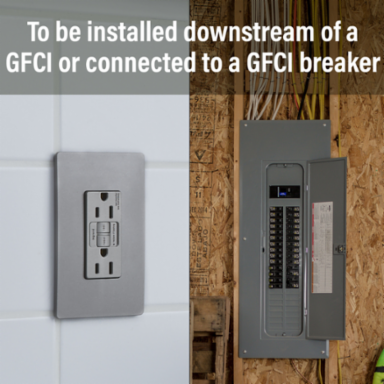

- Required installation downstream or connected to a GFCI breaker

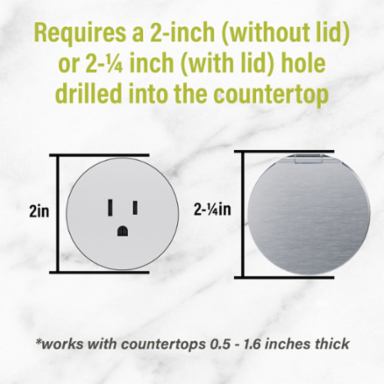

- Requires a 2-inch to 2.25-inch hole drilled into the countertop, which is dependent on the inclusion of a lid (an extra .25-inch is required with a lid)

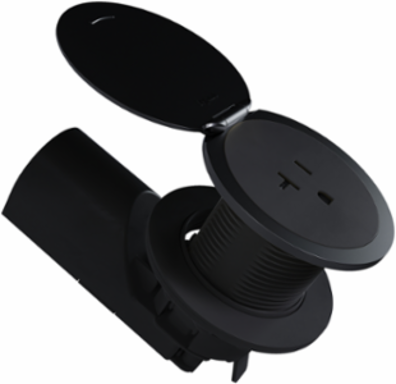

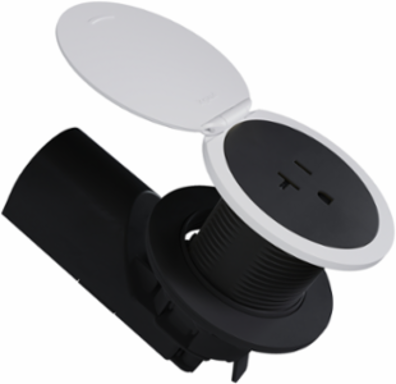

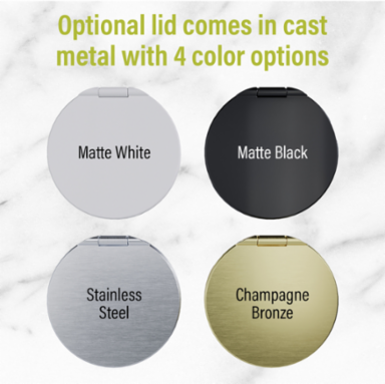

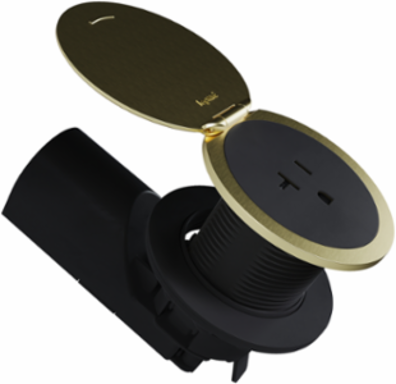

- Pair with optional cast metal iron available in four finishes: Matte Black, Matte White, Stainless Steel & Champagne Bronze
- Compact, surface-mount design blends in with design aesthetic and kitchen finishes
- Can withstand heavy wear and tear and is corrosion/chemical resistant

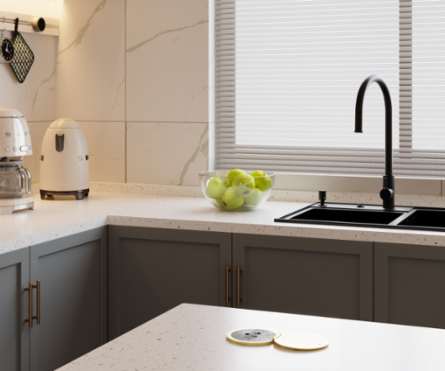

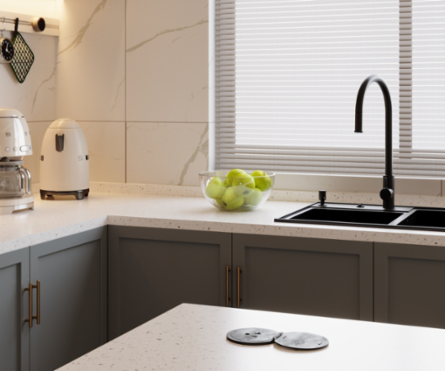

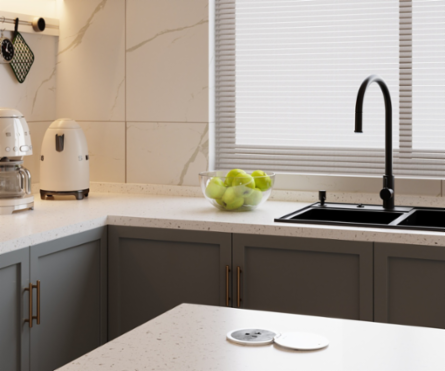

- For use on kitchen island or peninsula countertops
- Features tamper resistant shutters to protect against insertion of foreign objects

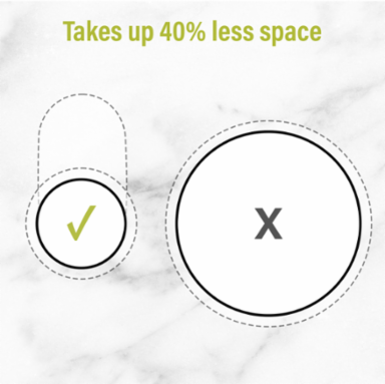

- Smallest profile in the industry. Compared to the competition, it has a smaller diameter and less depth, taking up nearly 40% less space on and under the counter
- Receptacle and tail assembly is suitable for install without a junction box
- Patents pending
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 3.6 in
- Height
- 3.7 in
- Weight
- 0.35 lb
- Standard
- UL 498
- Country of Origin
- China
- Indoor/Outdoor
- Indoor
- Wire Size
- #14 - #10 AWG
- Number of Receptacles
- 1.0
- Features
- Corrosion Resistant
- Connection Location
- Back Only
- Application Sector
- Hospitality
- Features
- Quick Connect Compatible
- Warranty Type
- 1-Year Limited Warranty
- Standard
- cULus Listed Receptacle, Countertop or Work Surface Assembly
- Product Line
- Pass & Seymour
Temperature RiseMaximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
Amperage20.0 A
Width2.3 in
Voltage125.0 V
Number of Phases1.0
Is Tamper-ResistantYes
FeaturesSpill-Resistant
Number of PolesDouble Pole
Outlet TypeTamper-Resistant
NEMA Configuration Code5-20R
Application SectorResidential
Wire Connection TypeScrew Terminals
Application SectorMulti-Dwelling Unit
ColorMatte Black
