Weidmuller 1937840000 KLIPPON K02 VMQ RAL7001
- MPN: 1937840000
- PPN: WDM-1937840000
CAD
$100.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

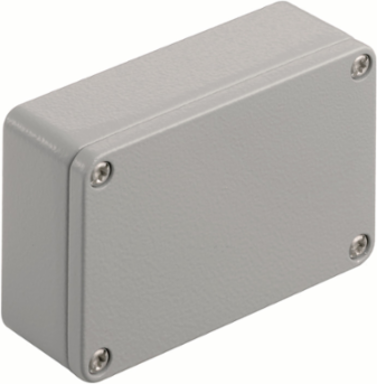

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 64 mm, Width: 98 mm, Depth: 34 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS, DNV GL, EAC, MARITREG
- UL File Number Search
- E197061
ROHSConform

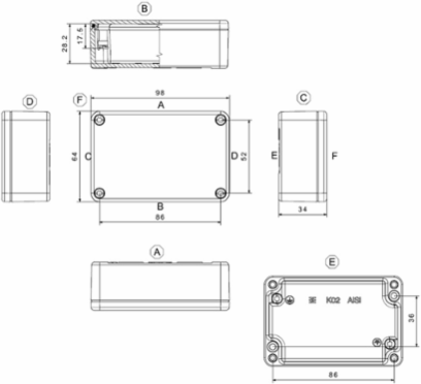

Dimensions And Weights
- Width
- 98 mm
- Height
- 64 mm
- Depth
- 34 mm
- Mounting dimension - width
- 86 mm
- Net weight
- 217 g
Width (inches)3.858 inch
Height (inches)2.52 inch
Depth (inches)1.339 inch
Mounting dimension - height36 mm
Horizontal Assembly
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x1*
WDU 4 / ZDU 41x1*
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Vertical Assembly
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x1*
WDU 4 / ZDU 41x1*
Cable Glands, Top/Bottom
- M12
- 3
- M20
- 2
M163
Cable Glands, Right
- M12
- 1
M161
Cable Glands, Left
- M12
- 1
M161
General Information
- Areas of use
- Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
- Material
- Aluminium AlSi12
- Surface finish
- Powder-coated, textured
- Operating temperature, min.
- -60 °C
- Impact resistance
- 10.00 J
- Note: protection class
- IP68 (t=72h, h=1m)
- Lid attachment
- M4 torx stainless steel screws with slot
Torque for lid screws2.5 Nm
Seal materialSilicone
Colour codeRAL 7001
Operating temperature, max.135 °C
Protection degreeIP66, IP67, IP68
Enclosure attachmentHoles 4 mm
Integral fixingThreaded holes M3
Certificate Numbers Enclosure
- Certificate No. (GERMLLOYD)
- TAE00002SM
- Certificate no. (cULus)
- E197061
Certificate No. (MARITREG)14.40040.250
