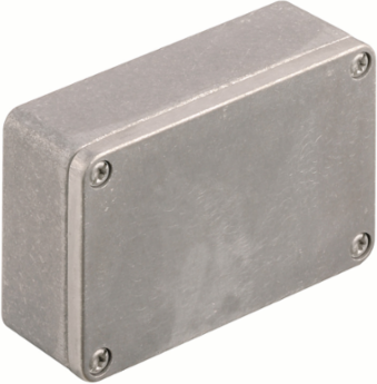

Weidmuller 1939550000 KLIPPON K02 VMQ

KLIPPON K02 VMQ - https://media.province-electric.com/web-weidmueller/2019q4/9e676acf0322fb16dc071330ec43769ed501aae1-medium.png

MPN: 1939550000
PPN: WDM-1939550000

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$85.97/ EA

Qty:

Loading add to cart quantity...

Description

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 64 mm, Width: 98 mm, Depth: 34 mm, Material: Aluminium AlSi12, untreated, silver

Specifications

Approvals

Approvals: CULUS, DNV GL, EAC, MARITREG

UL File Number Search: E197061

ROHSConform

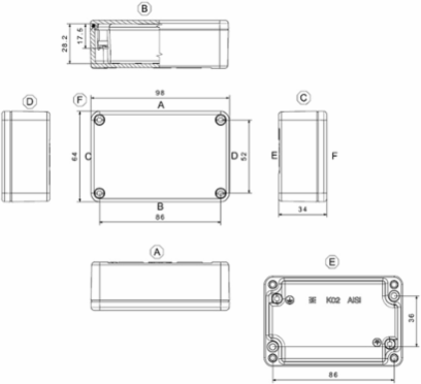

Dimensions And Weights

Width: 98 mm

Height: 64 mm

Depth: 34 mm

Mounting dimension - width: 86 mm

Net weight: 213.167 g

Width (inches)3.858 inch

Height (inches)2.52 inch

Depth (inches)1.339 inch

Mounting dimension - height36 mm

Classifications

ETIM 6.0: EC000261

eClass 9.0: 27-18-01-01

eClass 10.0: 27-18-01-01

ETIM 7.0EC000261

eClass 9.127-18-92-90

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Cable Glands, Top/Bottom

M12: 3

M20: 2

M163

Cable Glands, Right

M12: 1

M161

Cable Glands, Left

M12: 1

M161

General Information

Areas of use: Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction

Material: Aluminium AlSi12

Surface finish: untreated

Operating temperature, max.: 135 °C

Protection degree: IP66, IP67, IP68

Enclosure attachment: Holes 4 mm

Integral fixing: Threaded holes M3

Torque for lid screws2.5 Nm

Seal materialSilicone

Operating temperature, min.-50 °C

Impact resistance10.00 J

Note: protection classIP68 (t=72h, h=1m)

Lid attachmentM4 torx stainless steel screws with slot

Certificate Numbers Enclosure

Certificate No. (GERMLLOYD): TAE00002SM

Certificate no. (cULus): E197061

Certificate No. (MARITREG)14.40040.250
