Weidmuller 1937630000 KLIPPON K1 VMQ RAL7001

MPN: 1937630000
PPN: WDM-1937630000

$82.33

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

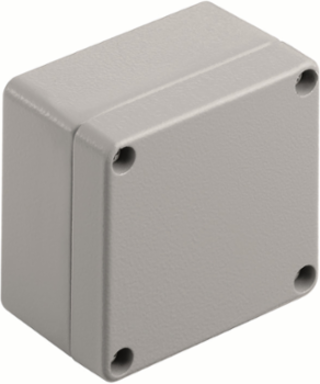

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 70 mm, Depth: 45 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS, DNV GL, EAC, MARITREG
UL File Number Search	E197061

ROHS	Conform

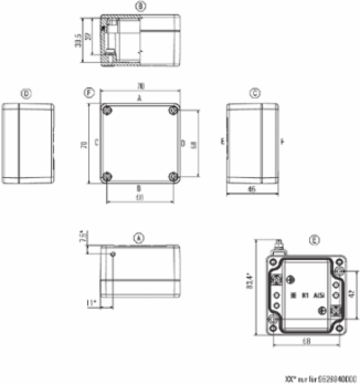

Dimensions And Weights

Width	70 mm
Height	70 mm
Depth	45 mm
Mounting dimension - width	58 mm
Net weight	251.9 g

Width (inches)	2.756 inch
Height (inches)	2.756 inch
Depth (inches)	1.772 inch
Mounting dimension - height	42 mm

Horizontal Assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5	1x5

WDU 4 / ZDU 4	1x1*

Classifications

ETIM 6.0	EC000261
eClass 9.0	27-18-01-01
eClass 10.0	27-18-01-01

ETIM 7.0	EC000261
eClass 9.1	27-18-92-90

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Vertical Assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5	1x1*

WDU 4 / ZDU 4	1x1*

Cable Glands, Top/Bottom

M12	2
M20	1

M16	2

Cable Glands, Right

M12	1

M16	1

Cable Glands, Left

M12	1

M16	1

General Information

Areas of use	Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
Material thickness of cover	3 mm
Torque for lid screws	2.5 Nm
Seal material	Silicone
Operating temperature, min.	-60 °C
Impact resistance	10.00 J
Note: protection class	IP68 (t=72h, h=1m)
Lid attachment	M4 torx stainless steel screws with slot

Material thickness	3.5 mm
Material thickness of enclosure	3.5 mm
Material	Aluminium AlSi12
Surface finish	Powder-coated, textured
Operating temperature, max.	135 °C
Protection degree	IP66, IP67, IP68
Enclosure attachment	Holes 4 mm
Integral fixing	Threaded holes M4
