Weidmuller 1939560000 KLIPPON K1 VMQ

KLIPPON K1 VMQ - https://media.province-electric.com/web-weidmueller/2019q4/311bdb20dc7fb1d1ed6e91a6fcbd522d58e4adfc-medium.png

MPN: 1939560000
PPN: WDM-1939560000

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$67.15/ EA

Qty:

Loading add to cart quantity...

Description

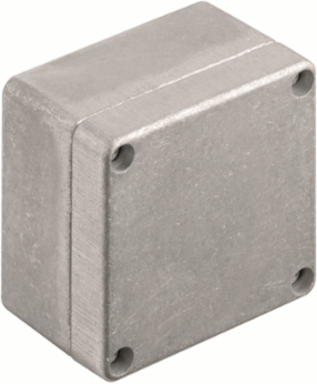

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 70 mm, Depth: 45 mm, Material: Aluminium AlSi12, untreated, silver

Specifications

Approvals

Approvals: CULUS, DNV GL, EAC, MARITREG

UL File Number Search: E197061

ROHSConform

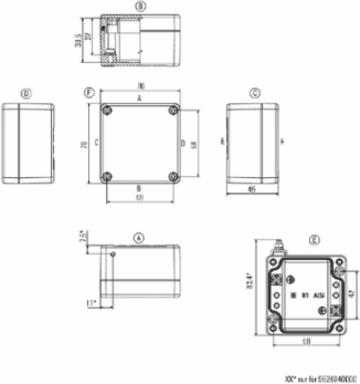

Dimensions And Weights

Width: 70 mm

Height: 70 mm

Depth: 45 mm

Mounting dimension - width: 58 mm

Net weight: 252.8 g

Width (inches)2.756 inch

Height (inches)2.756 inch

Depth (inches)1.772 inch

Mounting dimension - height42 mm

Classifications

ETIM 6.0: EC000261

eClass 9.0: 27-18-01-01

eClass 10.0: 27-18-01-01

ETIM 7.0EC000261

eClass 9.127-18-92-90

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Cable Glands, Top/Bottom

M12: 2

M20: 1

M162

Cable Glands, Right

M12: 1

M161

Cable Glands, Left

M12: 1

M161

General Information

Areas of use: Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction

Material thickness of cover: 3 mm

Torque for lid screws: 2.5 Nm

Seal material: Silicone

Operating temperature, min.: -50 °C

Impact resistance: 10.00 J

Note: protection class: IP68 (t=72h, h=1m)

Lid attachment: M4 torx stainless steel screws with slot

Material thickness3.5 mm

Material thickness of enclosure3.5 mm

MaterialAluminium AlSi12

Surface finishuntreated

Operating temperature, max.135 °C

Protection degreeIP66, IP67, IP68

Enclosure attachmentHoles 4 mm

Integral fixingThreaded holes M4

Certificate Numbers Enclosure

Certificate No. (GERMLLOYD): TAE00002SM

Certificate no. (cULus): E197061

Certificate No. (MARITREG)14.40040.250
