Weidmuller 1939630000 KLIPPON K4 VMQ
- MPN: 1939630000
- PPN: WDM-1939630000
CAD
$115.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

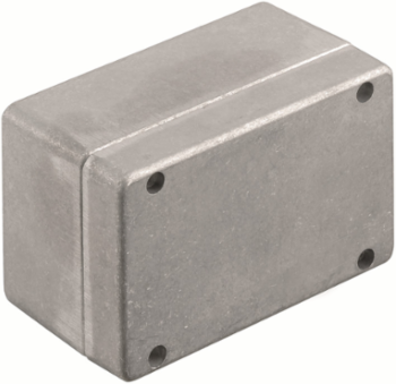

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 82 mm, Width: 130 mm, Depth: 72 mm, Material: Aluminium AlSi12, untreated, silver
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS, DNV GL, EAC, MARITREG
- UL File Number Search
- E197061
ROHSConform

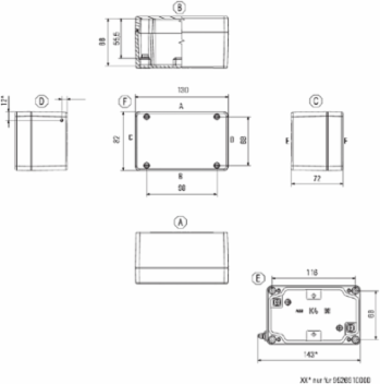

Dimensions And Weights
- Width
- 130 mm
- Height
- 82 mm
- Depth
- 72 mm
- Mounting dimension - width
- 116 mm
- Net weight
- 668 g
Width (inches)5.118 inch
Height (inches)3.228 inch
Depth (inches)2.835 inch
Mounting dimension - height68 mm
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Vertical Assembly
- WDU 10 / ZDU 10
- 1x2
- WDU 4 / ZDU 4
- 1x4
WDU 2,5 / ZDU 2,5 / IDU 2,51x5
WDU 6 / ZDU 61x3
Cable Glands, Top/Bottom
- M12
- 5
- M20
- 2
M163
M252
Cable Glands, Right
- M12
- 2
- M20
- 1
- M32
- 1
M162
M251
Cable Glands, Left
- M12
- 2
- M20
- 1
- M32
- 1
M162
M251
General Information
- Areas of use
- Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
- Material thickness of cover
- 2.5 mm
- Torque for lid screws
- 2.5 Nm
- Seal material
- Silicone
- Operating temperature, min.
- -50 °C
- Impact resistance
- 10.00 J
- Note: protection class
- IP68 (t=72h, h=1m)
- Lid attachment
- M4 torx stainless steel screws with slot
Material thickness4 mm
Material thickness of enclosure4 mm
MaterialAluminium AlSi12
Surface finishuntreated
Operating temperature, max.135 °C
Protection degreeIP66, IP67, IP68
Enclosure attachmentHoles 5 mm
Integral fixingThreaded holes M5
Certificate Numbers Enclosure
- Certificate No. (GERMLLOYD)
- TAE00002SM
- Certificate no. (cULus)
- E197061
Certificate No. (MARITREG)14.40040.250
