Weidmuller

Weidmuller 0342300000 KLIPPON K4

KLIPPON K4
KLIPPON K4
  • MPN: 0342300000
  • PPN: WDM-0342300000

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$57.93/ EA

Description

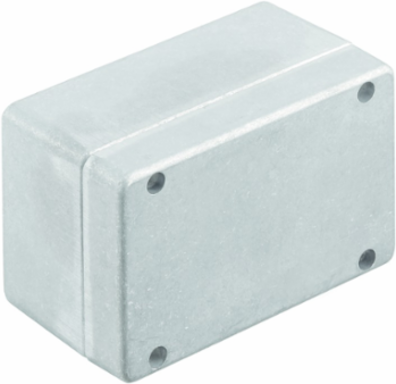

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 82 mm, Width: 130 mm, Depth: 72 mm, Material: Aluminium AlSi12, untreated, silver

Specifications

Approvals

Approvals
CE, CULUS, DNV GL, EAC, MARITREG
UL File Number Search
E197061
ROHSConform

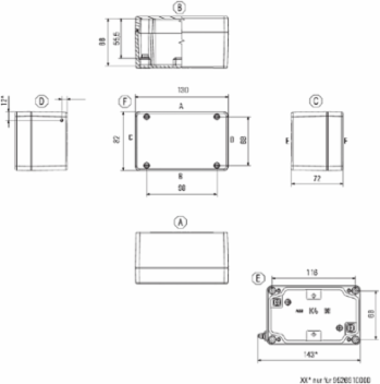

Dimensions And Weights

Width
130 mm
Height
82 mm
Depth
72 mm
Mounting dimension - width
116 mm
Weight
620 g
Width (inches)5.118 inch
Height (inches)3.228 inch
Depth (inches)2.835 inch
Mounting dimension - height68 mm
Net weight633 g

Classifications

ETIM 6.0
EC000261
eClass 9.0
27-18-01-01
eClass 10.0
27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
UNSPSC31-26-15-02

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

Vertical Assembly

WDU 10 / ZDU 10
1x2
WDU 4 / ZDU 4
1x4
WDU 2,5 / ZDU 2,5 / IDU 2,51x5
WDU 6 / ZDU 61x3

Cable Glands, Top/Bottom

M12
5
M20
2
M163
M252

Cable Glands, Right

M12
2
M20
1
M32
1
M162
M251

Cable Glands, Left

M12
2
M20
1
M32
1
M162
M251

General Information

Areas of use
Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
Material thickness of cover
2.5 mm
Torque for lid screws
2.5 Nm
Seal material
Chloroprene
Operating temperature, min.
-40 °C
Impact resistance
10.00 J
Note: protection class
IP68 (t=72h, h=1m)
Lid attachment
M4 torx stainless steel screws with slot
Material thickness4 mm
Material thickness of enclosure4 mm
MaterialAluminium AlSi12
Surface finishuntreated
Operating temperature, max.80 °C
Protection degreeIP66, IP67, IP68
Enclosure attachmentHoles 5 mm
Integral fixingThreaded holes M5

Certificate Numbers Enclosure

Certificate No. (GERMLLOYD)
TAE00002SM
Certificate no. (cULus)
E197061
Certificate No. (MARITREG)14.40040.250
