Weidmuller

Weidmuller 9529210000 KLIPPON K5 RAL7001

KLIPPON K5 RAL7001
KLIPPON K5 RAL7001
  • MPN: 9529210000
  • PPN: WDM-9529210000

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$144.18/ EA

Description

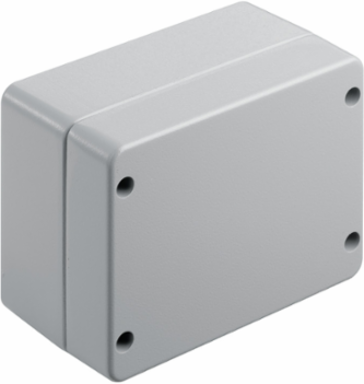

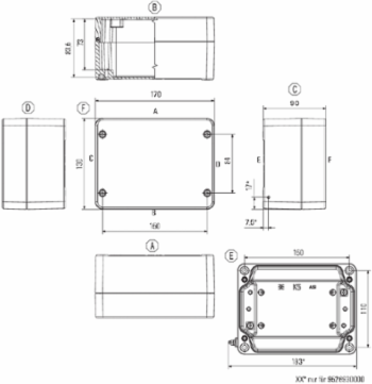

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 130 mm, Width: 170 mm, Depth: 90 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey

Specifications

Operating Temperature Range
-40 C to 80 C
Protection Degree
IP66, IP67, IP68 (IP68: 72h, 1m)
Material Thickness
4.6 mm
Height
130 mm (5.118 inch)
Depth
90 mm (3.543 inch)
Seal Material
Chloroprene
Lid Attachment
M5 torx stainless steel screws with slot
Number of Lid Screws
4
Approvals
CE, cULus, DNV GL, EAC, MARITREG, ATEX, IECEx, RoHS, EN 45545-2:2013
Impact Resistance10 J
MaterialAluminium AlSi12
Material Thickness Cover3 mm
Width170 mm (6.693 inch)
Weight1,420 g
Surface FinishPowder-coated, textured, Silver grey
Torque for Lid Screws2.5 Nm
Protection Class (UL)Type 4, Type 4X
