Weidmuller 0342400000 KLIPPON K5
- MPN: 0342400000
- PPN: WDM-0342400000
CAD
$130.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

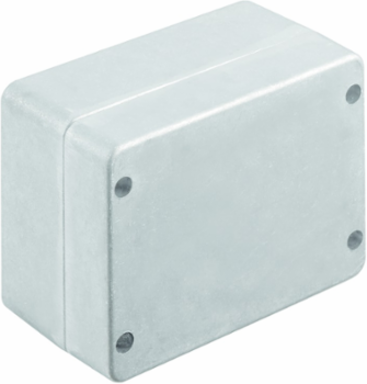

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 130 mm, Width: 170 mm, Depth: 90 mm, Material: Aluminium AlSi12, untreated, silver
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CULUS, DNV GL, EAC, MARITREG |
|---|---|
| UL File Number Search | E197061 |
| ROHS | Conform |
|---|

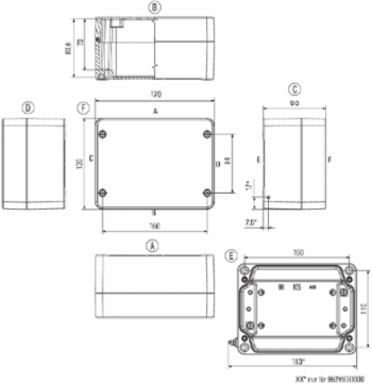

Dimensions And Weights
| Width | 170 mm |
|---|---|
| Height | 130 mm |
| Depth | 90 mm |
| Mounting dimension - width | 150 mm |
| Weight | 1,540 g |
| Width (inches) | 6.693 inch |
|---|---|
| Height (inches) | 5.118 inch |
| Depth (inches) | 3.543 inch |
| Mounting dimension - height | 110 mm |
| Net weight | 1,360 g |
Horizontal Assembly
| WDU 10 / ZDU 10 | 1x10 |
|---|---|
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x20 |
| WDU 6 / ZDU 6 | 1x12 |
| WDU 16 / ZDU 16 | 1x8 |
|---|---|
| WDU 4 / ZDU 4 | 1x16 |
Classifications
| ETIM 6.0 | EC000261 |
|---|---|
| eClass 9.0 | 27-18-01-01 |
| eClass 10.0 | 27-18-01-01 |
| ETIM 7.0 | EC000261 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
| UNSPSC | 31-26-15-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Cable Glands, Top/Bottom
| M12 | 11 |
|---|---|
| M20 | 4 |
| M32 | 2 |
| M16 | 8 |
|---|---|
| M25 | 3 |
Cable Glands, Right
| M12 | 4 |
|---|---|
| M20 | 1 |
| M32 | 1 |
| M16 | 2 |
|---|---|
| M25 | 1 |
Cable Glands, Left
| M12 | 4 |
|---|---|
| M20 | 1 |
| M32 | 1 |
| M16 | 2 |
|---|---|
| M25 | 1 |
General Information
| Areas of use | Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction |
|---|---|
| Material thickness of cover | 3 mm |
| Torque for lid screws | 2.5 Nm |
| Seal material | Chloroprene |
| Operating temperature, min. | -40 °C |
| Impact resistance | 10.00 J |
| Note: protection class | IP68 (t=72h, h=1m) |
| Lid attachment | M5 torx stainless steel screws with slot |
| Material thickness | 4.6 mm |
|---|---|
| Material thickness of enclosure | 4.6 mm |
| Material | Aluminium AlSi12 |
| Surface finish | untreated |
| Operating temperature, max. | 80 °C |
| Protection degree | IP66, IP67, IP68 |
| Enclosure attachment | Holes 6 mm |
| Integral fixing | Threaded holes M5 |
Certificate Numbers Enclosure
| Certificate No. (GERMLLOYD) | TAE00002SM |
|---|---|
| Certificate no. (cULus) | E197061 |
| Certificate No. (MARITREG) | 14.40040.250 |
|---|
