Weidmuller 1939670000 KLIPPON K52 VMQ

MPN: 1939670000
PPN: WDM-1939670000

$295.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

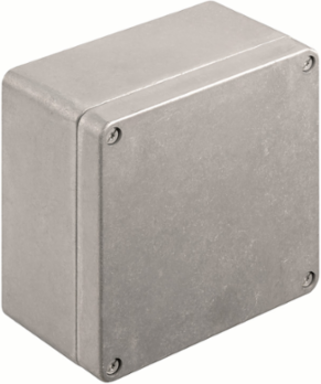

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 160 mm, Depth: 91 mm, Material: Aluminium AlSi12, untreated, silver

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS, DNV GL, EAC, MARITREG
UL File Number Search	E197061

ROHS	Conform

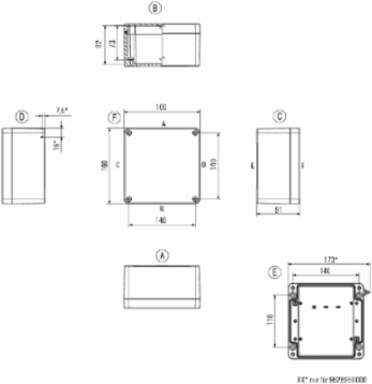

Dimensions And Weights

Width	160 mm
Height	160 mm
Depth	91 mm
Mounting dimension - width	140 mm
Net weight	1,589 g

Width (inches)	6.299 inch
Height (inches)	6.299 inch
Depth (inches)	3.583 inch
Mounting dimension - height	110 mm

Horizontal Assembly

WDU 10 / ZDU 10	1x9
WDU 4 / ZDU 4	1x15

WDU 2,5 / ZDU 2,5 / IDU 2,5	1x18
WDU 6 / ZDU 6	1x11

Classifications

ETIM 6.0	EC000261
eClass 9.0	27-18-01-01
eClass 10.0	27-18-01-01

ETIM 7.0	EC000261
eClass 9.1	27-18-92-90

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Cable Glands, Top/Bottom

M12	14 ???New14???
M20	5
M32	2

M16	8
M25	3
M40	1

Cable Glands, Right

M12	8
M20	3
M32	1

M16	5
M25	2

Cable Glands, Left

M12	8
M20	3
M32	1

M16	5
M25	2

General Information

Areas of use	Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
Material thickness of cover	4 mm
Torque for lid screws	2.5 Nm
Seal material	Silicone
Operating temperature, min.	-50 °C
Impact resistance	10.00 J
Note: protection class	IP68 (t=72h, h=1m)
Lid attachment	M6 torx stainless steel screws with slot

Material thickness	4.5 mm
Material thickness of enclosure	4.5 mm
Material	Aluminium AlSi12
Surface finish	untreated
Operating temperature, max.	135 °C
Protection degree	IP66, IP67, IP68
Enclosure attachment	Holes 6 mm
Integral fixing	Threaded holes M5
