Weidmuller 1565290000 KLIPPON K52
- MPN: 1565290000
- PPN: WDM-1565290000
CAD
$131.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

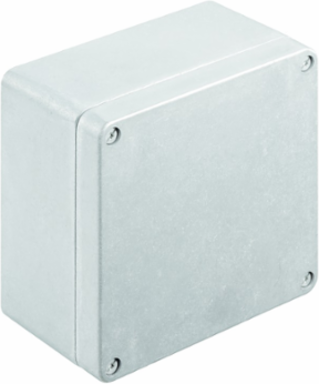

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 160 mm, Depth: 91 mm, Material: Aluminium AlSi12, untreated, silver
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CULUS, DNV GL, EAC, MARITREG |
|---|---|
| UL File Number Search | E197061 |
| ROHS | Conform |
|---|

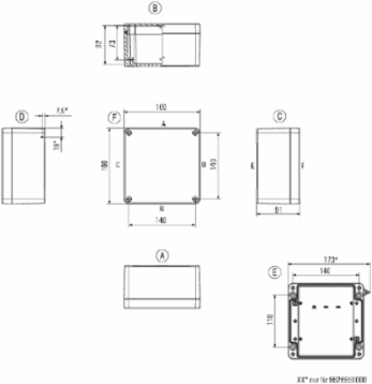

Dimensions And Weights
| Width | 160 mm |
|---|---|
| Height | 160 mm |
| Depth | 91 mm |
| Mounting dimension - width | 140 mm |
| Weight | 1,480 g |
| Width (inches) | 6.299 inch |
|---|---|
| Height (inches) | 6.299 inch |
| Depth (inches) | 3.583 inch |
| Mounting dimension - height | 110 mm |
| Net weight | 1,594 g |
Horizontal Assembly
| WDU 10 / ZDU 10 | 1x9 |
|---|---|
| WDU 4 / ZDU 4 | 1x15 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x18 |
|---|---|
| WDU 6 / ZDU 6 | 1x11 |
Classifications
| ETIM 6.0 | EC000261 |
|---|---|
| eClass 9.0 | 27-18-01-01 |
| eClass 10.0 | 27-18-01-01 |
| ETIM 7.0 | EC000261 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
| UNSPSC | 31-26-15-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Cable Glands, Top/Bottom
| M12 | 14 ???New14??? |
|---|---|
| M20 | 5 |
| M32 | 2 |
| M16 | 8 |
|---|---|
| M25 | 3 |
| M40 | 1 |
Cable Glands, Right
| M12 | 8 |
|---|---|
| M20 | 3 |
| M32 | 1 |
| M16 | 5 |
|---|---|
| M25 | 2 |
Cable Glands, Left
| M12 | 8 |
|---|---|
| M20 | 3 |
| M32 | 1 |
| M16 | 5 |
|---|---|
| M25 | 2 |
General Information
| Areas of use | Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction |
|---|---|
| Material thickness of cover | 4 mm |
| Torque for lid screws | 2.5 Nm |
| Seal material | Chloroprene |
| Operating temperature, min. | -40 °C |
| Impact resistance | 10.00 J |
| Note: protection class | IP68 (t=72h, h=1m) |
| Lid attachment | M6 torx stainless steel screws with slot |
| Material thickness | 4.5 mm |
|---|---|
| Material thickness of enclosure | 4.5 mm |
| Material | Aluminium AlSi12 |
| Surface finish | untreated |
| Operating temperature, max. | 80 °C |
| Protection degree | IP66, IP67, IP68 |
| Enclosure attachment | Holes 6 mm |
| Integral fixing | Threaded holes M5 |
Certificate Numbers Enclosure
| Certificate No. (GERMLLOYD) | TAE00002SM |
|---|---|
| Certificate no. (cULus) | E197061 |
| Certificate No. (MARITREG) | 14.40040.250 |
|---|
