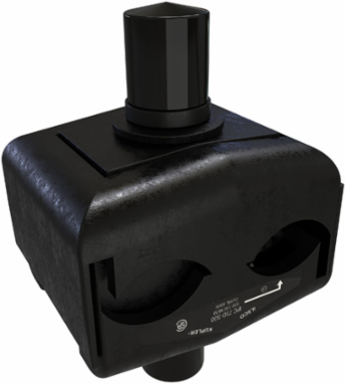

ILSCO IPC-750-500 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 750-500, Tap Range 500-350,Tin Plated, UL, CSA
- MPN: IPC-750-500
- UPC: 783669532821
- PPN: ILC-IPC-750-500
CAD
$396.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 750-500, Tap Range 500-350,Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3.193 in | 81.1022 mm
- Weight
- 1.669 lbs
Length5.544 in | 140.8176 mm
Width3.767 in
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 7/8-7/8
- Height BX (IN)
- 3.625
- Length (mm)
- 140.8176
- Width BX (IN)
- 4
Drive Type MainExternal Hex
Height (mm)81.1022
Weight BX (LB)1.77
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports Tap
- 1
Contains DE-OX®No
Number of Poles1
Wire OrientationParallel
Material and Finish
- Clamping Hardware Finish
- Tin
- Conductor Material
- Copper, Aluminum
- Insulation
- Nylon
Clamping Hardware MaterialAlloy steel
Connector FinishTin
MaterialCopper
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 750 kcmil - 500 kcmil
- Conductor Range CU Stranded (Primary, run, main, line)
- 750 kcmil - 500 kcmil
Conductor Range AL Stranded (Secondary, tap, load)500 kcmil - 350 kcmil
Conductor Range CU Stranded (Secondary, tap, load)500 kcmil - 350 kcmil
Additional Technical Specifications
- Connector Amperage Rating AL (Derated where applicable)
- 350 Amps
- Conductor Type
- Stranded
Connector Amperage Rating CU (Derated where applicable)430 Amps
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedYes
UPC Code78366953282
Bolt and Screw Sizes
- Clamping Bolt Size
- 1/2-13
- Wire Binding Torque
- 900
Number of Wire Binding Screws per Port1
Color
- Color
- Black
Environment and Temperature
- Temperature Rating
- 90°C
