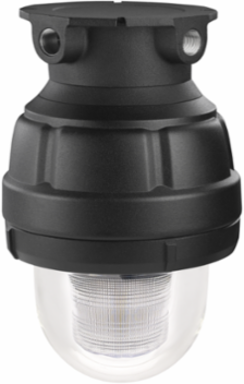

LED Light, Explosion-Proof, UL and cUL CID1, 120-240VAC, Clear, Default Flashing, Mount Sold Separately
Federal Signal

Federal Signal 27XL-120-240C-MOD LED Light, Explosion-Proof, UL and cUL CID1, 120-240VAC, Clear, Default Flashing, Mount Sold Separately

  • MPN: 27XL-120-240C-MOD
  • UPC: 782979232711
  • PPN: FDS-27XL-120-240C-MOD
  • UNSPSC: 39111706

CAD

$3339.97

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Model 27XL explosion-proof LED light is unique to the market because it covers an entire range of possible mounting configurations – including dome up.Configurable to either steady-burning or flashing mode, 27XL provides improved performance over standard LEDs and increased versatility while maintaining low power consumption and vibration resistance expected from LED devices.The 27XL features a standard low in-rush circuitry design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices. Corrosion resistance is achieved with a powder coat finish applied over the copper-free aluminum housing.Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.

Features

  • Approved for mounting in any manner – including dome up
  • Available in 24VAC/DC and 120-240VAC
  • 50,000 hour LED
  • Six lamp/lens colors: Amber, Blue, Clear, Green, Magenta, and Red
  • 3/4" NPT pendant, ceiling, or wall mount options available. Sold separately (Required)
  • Flashing or steady-burn mode
  • Dome guard optional
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Rated

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Body Color
Black
Certification Listing
Marine, UL, cUL
Diameter (mm)
224.028
Flashes Per Minute
60
Lens Color
Clear
Mount Type
3/4-Inch NPT Pendant, Ceiling, Wall
Operating Temp.
-67˚ to +150˚F (-55˚ to +66˚C)
Required Mount
black-mounting-kits
Visual Signals Operating Voltage
120-240VAC
Height
11.37 in, 28.8798 cm
Weight13.9 lbs
Candela Effective Power238
Diameter (in)8.82
Flash Pattern TypeFlashing or Steady
AvailabilityContact Us for Availability
Lens StyleFresnel
Operating Current Amps210/130 mA @ 120-240VAC
Operating Voltage120-240 Vac
Visual Signals Lens ColorClear
Depth11.37 in, 28.8798 cm
Diameter8.82 in, 22.4028 cm
