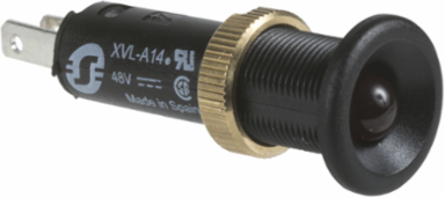

Schneider Electric XVLA124 Red LED Pilot Light, 8mm, IP40, 12V, Protruding LED, Faston Connectors
- MPN: XVLA124
- PPN: SCH-XVLA124
CAD
$10.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XVLA124 is a red pilot light diameter 8mm. Its degree of protection is IP40. It has protruding LED included, 12V, faston connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XVL
- Mounting Diameter
- 8 mm
- Component Name
- XVL
- [Us] Rated Supply Voltage
- 12 V
- Light Block Colour
- red
Light Sourceprotruding LED
Product Or Component TypeLED pilot light with black bezel
Ip Degree Of ProtectionIP40 IEC 60529 || IP40 NF C 20-010
Protection Typebuilt-in by diode || integral ballast resistor
Complementary
- Height
- 12 mm
- Bulb Lifespan
- 100000 h
- Current Consumption
- 18 mA
- Connections - Terminals
- tag for Faston connectors 2.8 x 0.5 mm || tag for soldering connectors
- Width
- 12 mm
- Nominal Voltage Limit
- 0.8...1.1 Un
Terminals Description Iso N°1(X1-X2)PL
Net Weight0.003 kg
[Ui] Rated Insulation Voltage50 V IEC 60947-1
Supply Circuit TypeDC
Depth34 mm
Environment
- Product Certifications
- UL || CSA
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass 3 IEC 60536 || class 3 NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111048EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
