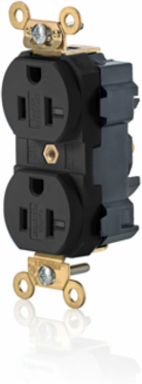

Leviton M5362-SE 20 Amp Lev-Lok Duplex Receptacle, Black, NEMA 5-20R, Self-Grounding
Leviton M5362-SE 20 Amp Lev-Lok Duplex Receptacle, Black, NEMA 5-20R, Self-Grounding
- MPN: M5362-SE
- UPC: 078477727447
- PPN: LEV-M5362-SE
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.73/ EA
Description
20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Lev-Lok® Duplex Receptacle, Straight Blade, Fed Spec Commercial Grade, Self-Grounding, Modular Terminals, Steel Strap - BLACK Mating Lev-Lok Wiring Module Required for Use Calculate Time & Money Saved with the Lev-Lok Savings Calculator!
Features
- The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
Specifications
Standards and Certifications
- ANSI
- C-73
- NOM Certified
- 057
- cULus
- Listed
NEMAWD-1 & WD-6
Warranty10-Year Limited
Material Specifications
- Base Material
- Nylon
- Cover Material
- Nylon
- Line Contacts
- 0.040” Thick Solid Brass
- Mounting Screws
- Triple Combination Head, Steel
BushingSolid Brass
Ground ClipsBrass
Locking PinsSolid Brass
Mounting StrapGalvanized Steel with Riveted Ground Contacts
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
TerminationModular
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Color
- Black
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingSelf-Grounding
Pole2
Voltage125 VAC
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
