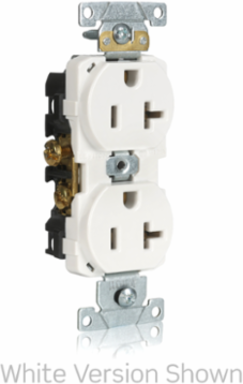

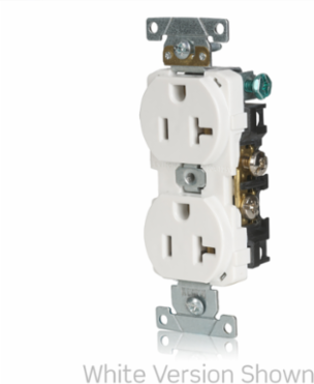

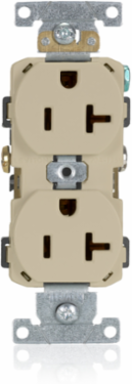

Leviton CR020-I 20 Amp Commercial Grade Duplex Receptacle, Self-Grounding, NEMA 5-20R, Ivory
- MPN: CR020-I
- UPC: 078477815472
- PPN: LEV-CR020-I
CAD
$5.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Ivory
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-2 WD-6 |
| Applicable Standards | UL 498| Fed Spec W-C-595G| CSA C22.2 No. 42 |
|---|---|
| NOM | 057 |
Material Specifications
| Body Material | Nylon |
|---|---|
| Ground Clips | Brass-Plated |
| Line Contacts | Brass Double Wipe .031 Thick |
| Yoke | Zinc-Plated Steel |
| Face Material | Nylon |
|---|---|
| Grounding Screw | Steel 8-32 |
| Terminal Screws | Steel 8-32 |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, White-Neutral |
| Terminal Accom. | 14-10 AWG |
|---|---|
| Termination | Side Wire |
Product Features
| Color | Ivory |
|---|---|
| Feature | Smooth Face |
| Standards and Certifications | UL/CSA |
| Warranty | 10-Year Limited |
| Device Type | Duplex Receptacle Outlet |
|---|---|
| Grade | Commercial Specification Grade |
| Strap Material | Steel |
Environmental Specifications
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Wire | 3 |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Voltage | 125 VAC |
AC Horsepower Ratings
| At Rated Voltage | 1 HP |
|---|
