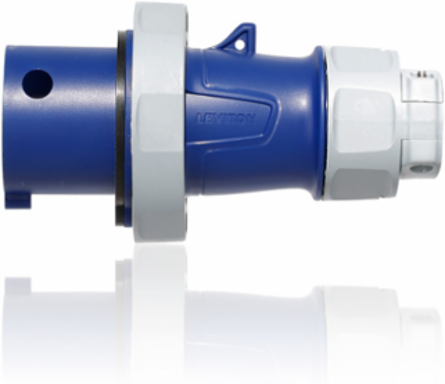

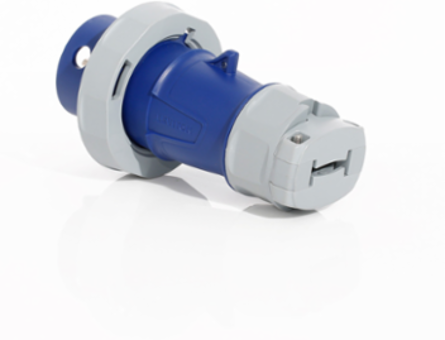

Leviton 330P6WLEV LEV Series IEC Pin & Sleeve Plug, 30/32 Amp, 250 Volt, IP66/IP67/IP68/IP69K, Blue

MPN: 330P6WLEV
UPC: 078477921630
PPN: LEV-330P6WLEV

$370.82

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

30/32 Amp, 250 Volt, 2P, 3W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Plug, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue

Features

LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:

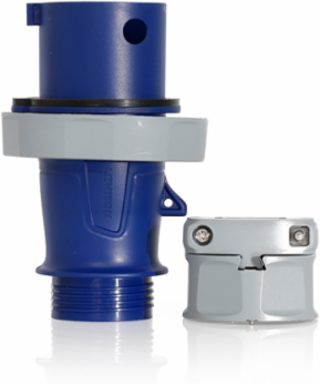

Threaded housing design removes several screws making installation quicker and easier
Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
NSF certified sanitary design trusted for use in food & beverage facilities Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007. LEV Series Savings Calculator

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

RoHS Compliant	False

Standards and Certifications

CE	CE certification
IEC Rating	60309-1, 60309-2
RoHS	RoHS compliant components

CSA	CSA C22.2 No 182.1-13 (Harmonized with UL 1682)
NOM	NOM –ANCE standards
UL	UL 1686 C2, UL 1682, UL Classified to IEC 60309-1, 60309-2

Material Specifications

Assembly Screws	303 Stainless Steel
Grommet/Gasket	NBR/Buna N
Locking Ring	Impact Modified Nylon

Contact Carrier	Glass filled Nylon
Housing	Impact Modified Nylon
Terminal Screws	303 Stainless Steel

Mechanical Specifications

Cable Clamp Screw Torque	10 in-lb
Contact Carrier Assembly Screw Torque	8 in-lb
Hardware Head Type	Hex style socket screws for terminals, combination screws for all others
Screw Terminal Torque	20 in-lb

Conductor Range	#12 AWG to #8 AWG
Crush Test	250 lbs for 1 min after -25°C for 6 hrs
Impact	Drop from 30" 8 times after conditioning to -25°C, for 6 hours; Drop from 72" after conditioning to -35°C, for 6 hours

Product Features

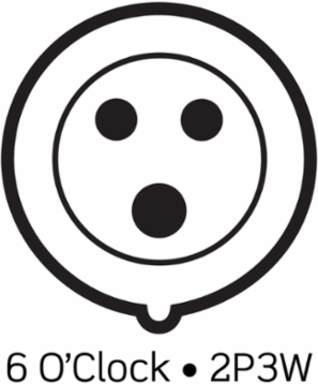

Clock Position	6 o'clock
Configuration	North American
Lockout/Tagout Provision	Lockout hole on housing
Series	LEV Series

Color	Blue
Device Type	Plug
Product Markings	Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label. IEC 60309-1, -2 Dual Ratings on separate label.

Warranty

Warranty	5-Year Limited

Environmental Specifications

Corrosion Resistance	Salt fog tested
IP Rating	IP66, IP67, IP68, IP69K
NSF	14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
UV Resistance	UV stabilized F1 rated housings

Flammability	Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
NEMA Enclosure Type	3R, 4X, 6P and 12
Operating Temperature	-40°C to 60°C (with impact)

Electrical Specifications

Amperage	30/32 A
Dielectric Voltage	3000V for 1 min.
Max. Voltage	600V
Pole	2
Temperature Rise	Max 30°C rise at full rated current (after overload)
Wire	3

Current Interrupting	Certified for current interrupting at full-rated current and voltage
Endurance	1000 cycles rated V and I load, 1000 cycles no-load (30A)
Overload UL20 Test	50 cycles
SCCR	200kA
Voltage	250 VAC
