Leviton EGFT1-W Lever Edge 15 Amp, Self Test, Tamper-Resistant GFCI, White
- MPN: EGFT1-W
- UPC: 078477016282
- PPN: LEV-EGFT1-W
CAD
$29.17
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

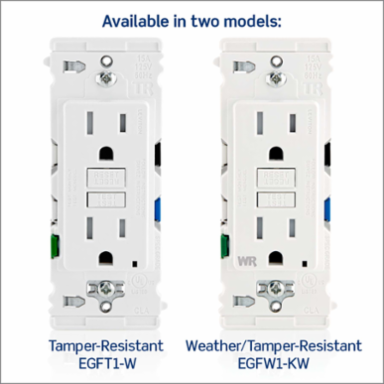

Leviton’s industry-leading GFCI line has been expanded with the addition of the Lever Edge GFCI - the faster and easier way to install GFCI protection! Utilizing unique color-coded lever terminals, the BLUE lever helps reduce the possibility of LINE/LOAD reversal. (3 pack available - EGFT1-3W) – White
Features

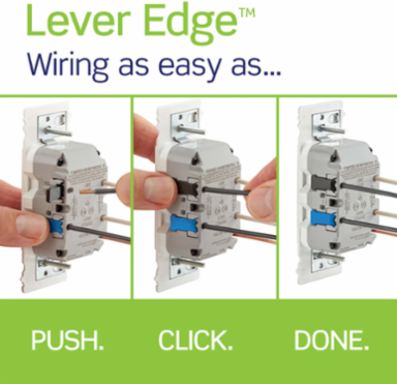

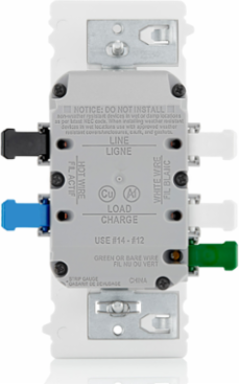

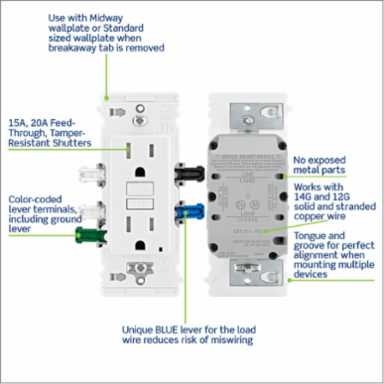

- Color-coded lever terminals for fast, efficient wiring; BLUE lever for load wire helps reduce risk of miswiring
- Strap’s unique tongue and groove alignment feature offers quicker trim out on multi-gang Lever Edge installations
- Improved immunity to high-frequency noise reduces nuisance tripping
- Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
- No exposed metal parts for enhanced safety; eliminates need for electrical tape
- Lever connectors work with 12 gauge and 14 gauge stranded and solid copper wire
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 5 seconds
- Auto-monitoring exceeds the UL requirement

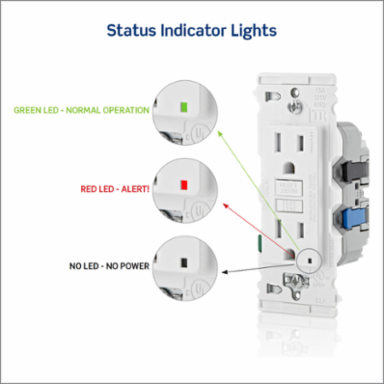

- Status Indicator Light provides simple, intuitive feedback on power and protection status
- Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault

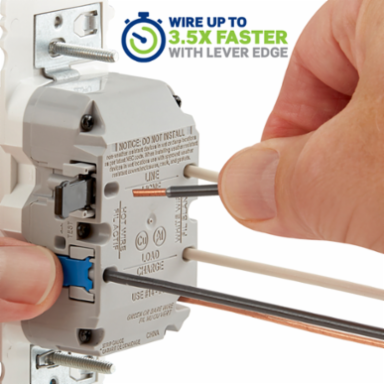

- FASTER – Lever terminals for fast, efficient wiring, delivering installation up to 3.5X faster than traditional devices
- EASIER – Large strap makes installations easier. Can be wired with either 14 or 12 gauge stranded or solid copper wire
- CONVENIENT – Color-coded lever terminals to help prevent miswiring. BLUE lever reduces the possibility of LINE/LOAD reversal
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
- SELF TESTING – Automatically self-tests to deliver continuous ground fault protection
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| Applicable Standards and Certifications | cULus|CSA C22.2 No. 144|CSA C22.2 No. 42|UL 943|UL 498 |
|---|
| NEMA | WD-1 and WD-6 |
|---|
Material Specifications
| Body | Thermoplastic |
|---|---|
| Grounding Screw | #8 Galvanized Steel |
| Mounting Strap | Galvanized Steel with Thermoplastic Cover |
| TR Shutter | Thermoplastic |
| Terminal Screws | nan |
| Face | Thermoplastic |
|---|---|
| Line Contacts | Brass |
| Self-Grounding Clip | Yes |
| Terminal Clamps | Brass |
Mechanical Specifications
| Product ID | Ratings are marked on device |
|---|---|
| Torque Range | nan |
| Termination | Color-Coded Levers |
|---|---|
| Wire Accomodation | #12-#14 AWG Copper Solid or Stranded |
Product Features
| Brand | Lever Edge |
|---|---|
| Device Type | Duplex Receptacle/Outlet |
| Grade | Residential/Commercial Specification Grade |
| Product Type | GFCI |
| Color | White |
|---|---|
| Feature(s) | Indicator Light, Self-Test, Tamper Resistant |
| NEMA Configuration | 5-15R |
Warranty
| Warranty | 2-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | Maximum Continuous 66°C, Minimum -35°C (w/o impact) |
|---|
Electrical Specifications
| Dielectric Voltage | 1250 VAC |
|---|---|
| Horsepower Rating | 1/2 hp |
| Power Supply Input and Frequency | 125V, 60Hz |
| Temperature Rise | Max 30°C |
| Voltage | 125 VAC |
| Grounding | Self-Grounding |
|---|---|
| Pole(s) | 2 |
| Short Circuit Current Rating | 10 kA |
| Trip Level | Class A |
| Wire(s) | 3 |
