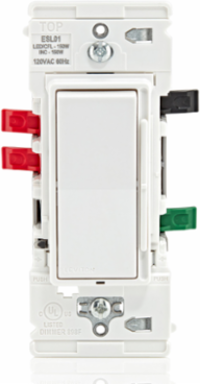

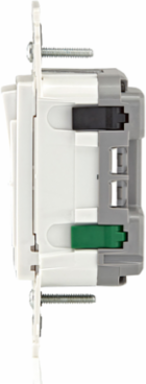

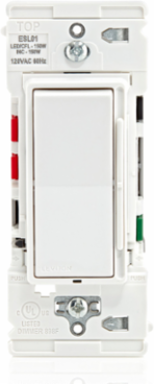

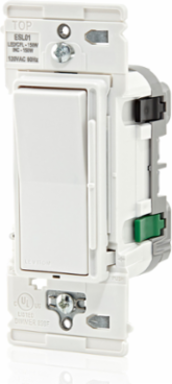

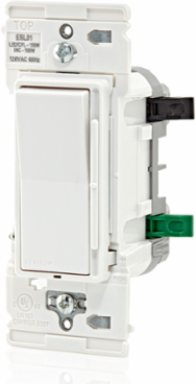

Leviton ESL01-1LW Decora Lever Edge Rocker Slide Dimmer Switch
- MPN: ESL01-1LW
- UPC: 078477021989
- PPN: LEV-ESL01-1LW
CAD
$40.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Replacing a light switch with a Decora Lever Edge Rocker Slide dimmer switch is now as easy as… push, click and done. The dimmer offers superior dimming performance with LED bulbs, and a faster, easier installation using Lever Edge terminals. The ESL01 dimmer is rated for 120V 60Hz 150W LED, CFL, and Incandescent lighting. It can be used in single pole or 3-way installations. The dimmer works with existing wiring, no neutral wire required for installation and is ideal for newer and older homes. The dimmer includes a setup button to easily adjust settings such as dimming range, fade on, startup configuration; use with Decora Midway or standard wallplates (sold separately – White)
Features

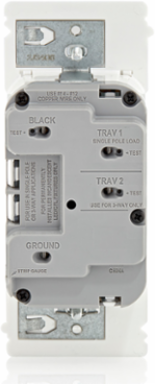

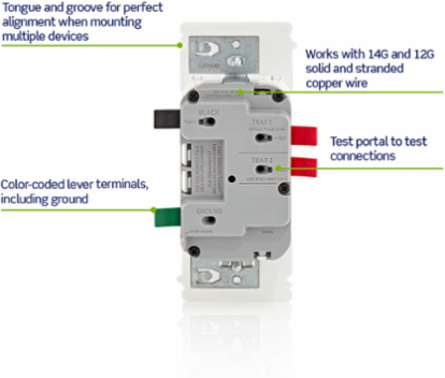

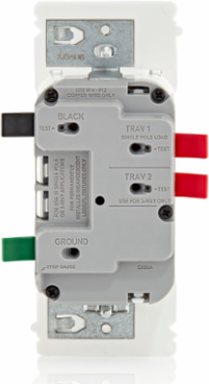

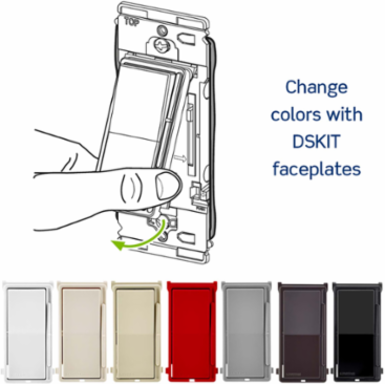

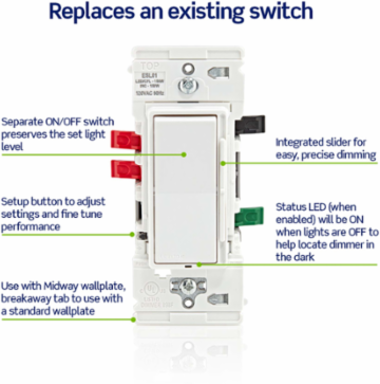

- Dimmer Features • Integrated slider to brighten and dim lights • No neutral wire required for installation • Separate On/Off Decora switch to set and keep the preferred light level • Setup button to easily adjust settings such as minimum and maximum dimming range, fade on, startup configuration, and more • Status LED can be enabled to illuminate when lights are OFF so it is easier to locate the dimmer in the dark • Single Pole or 3-way when used with a 3-way switch • Change the color using DSKIT faceplates available in white, ivory, light almond, gray, black, brown and red Lever Edge Installation Features • Patented lever terminals for fast, efficient wiring • Color coded terminals reduce the risk of miswiring • The only residential device on the market with a ground wire quick termination • No exposed metal parts for enhanced safety; eliminates need for electrical tape • Lever doors have “snap” feature to assure connection has been made; audible click confirms lever door is closed • Lever connectors work with 12 gauge and 14 gauge solid and stranded copper wire • Wire openings prevent wire insulation from being inserted into the terminals • Unique tongue and groove alignment feature offers quicker trim out in multi-gang installations • Test openings for circuit testers • Fits midway wallplates out of the box with easy break-off fins for compatibility with Decora® and Decora Plus™ standard and screwless wallplates
- PERFORMANCE YOU CAN TRUST - Affordable control engineered to match the performance of high-end dimmers.
- LED ADVANCED - Superior dimming of LED bulbs and fixtures ensures flicker-free lighting

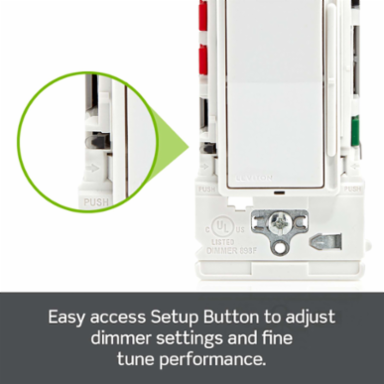

- CUSTOMIZEABLE - Setup button to optionally adjust dimmer settings and fine-tunes performance, including minimum dim, maximum bright, fade on, and startup configuration

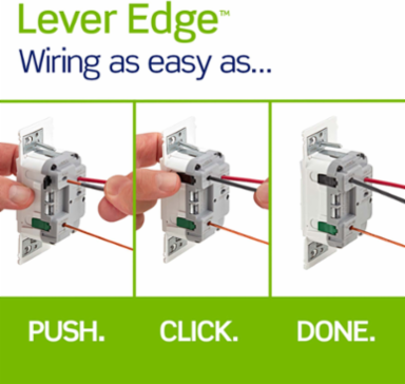

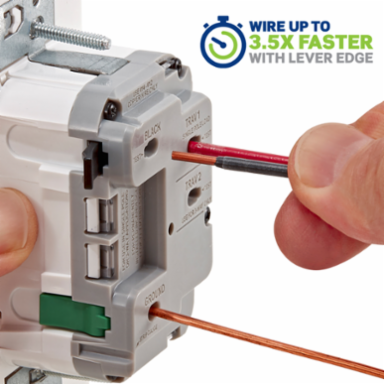

- INSTALLATION IS A BREEZE - Push. Click. Done. Install with confidence with simple to understand color coded levers, easy wire push in, and audible “click” confirming a secure connection. A neutral wire is not required for installation
- PEACE OF MIND KNOWING THAT CONNECTIONS ARE SAFE AND RELIABLE - The push-in Lever Edge terminals securely hold the wires in place

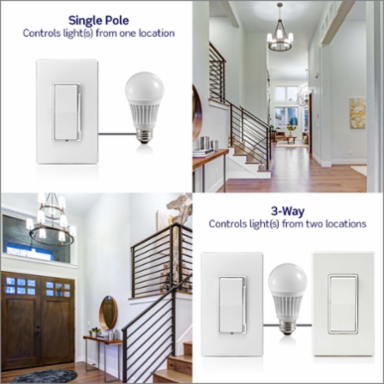

- 3-WAY CONTROL - Convenient control of the same lights from two separate locations; use the dimmer in one location and a 3-way switch (sold separately) in the second location
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Standards and Certifications
- cULus, FCC/IC, Title 24, IECC, SSL7A
Material Specifications
- Terminal Accom.
- Side Lever Wire #14-#12 AWG; Stranded and Solid copper wire only
- Termination
- Color-Coded Levers
Terminal IDColor Coded Lever Terminals, including Ground
Mechanical Specifications
- Actuator Material
- Thermoplastic
- Protection
- Radio/TV Filter
Body MaterialThermoplastic
Strap MaterialPlastic
Product Features
- Action
- Rocker Switch for ON/OFF, slide bar for lighting level control
- Brand
- Decora Slide
- Device Type
- Dimmer
- Light
- Locator light that can be turned off
- Switch Type
- Single-Pole & 3-Way
- Wallplate
- Order Separately
Available ColorsIvry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
ColorWhite
GradeResidential
PresetSet the Slide bar to maintain the desired lighting level
TypeRocker Slide Dimmer Switch
Warranty
- Warranty
- 1-Year Limited
Electrical Specifications
- Frequency
- 60 Hz
- Load Rating
- 150W LED, 150W CFL, 150W Incandescent
- Voltage
- 120VAC
GroundingSelf-Grounding
Load TypeDimmable LED, Dimmable CFL, Incandescent
