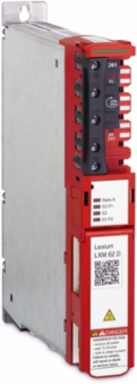

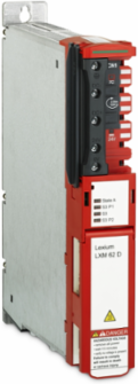

Schneider Electric LXM62DD27F21000 Lexium 62 Double Drive 27A, 4.3kW, 24VDC, IP20, 3kg
- MPN: LXM62DD27F21000
- PPN: SCH-LXM62DD27F21000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Lexium 62 & Motors range, an offer of servo drives. The double drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a double drive with a rated supply voltage of 24VDC, a continuous output current of 5A at 4kHz and a continuous power of 4.3kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets IEC 62061, EN 61800-3, EN/ISO 13849-1, UL 508C, EN 61800-5-1, EN 61800-5-2 and EN/ISO 13849-2 standards. This product is compatible with servo motor SH3 (100mm, 3 motor stacks), servo motor SH3 (100mm, 4 motor stacks) and servo motor SH3 (140mm, 1 motor stack). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth270 mm
Communications & Management Attributes
- Communication Interface
- SERCOS III, Integrated
Complementary Attributes
- Us Rated Supply Voltage
- 400 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)single phase, 230 V
- Maximum Ambient Air Temperature For Operation
- 55.0 °C
- Maximum Operational Altitude
- 3000.0 m
- Maximum In Rated Current
- 9.0 A
Line Rated Current9.0 A
Maximum Current Irms27.0 A
Minimum Ambient Air Temperature For Operation5.0 °C
Important Information Attributes
- Persona Type Ids
- EU, OM
- Electrical Connection
- terminal 0.2...15 mm², AWG 24...AWG 16 CN4), terminal 0.5...16 mm², AWG 20...AWG 6 CN5), terminal 0.75...16 mm², AWG 18...AWG 6 CN6), terminal 0.2...6 mm², AWG 24...AWG 10 CN7)
- Safety Function
- STO (safe torque off), SS1 (safe stop 1), SS2 (safe stop 2), SOS (safe operating stop), SMS (safe maximum speed), SLS (safe limited speed), SDI (safe direction indication)
- Carbon Footprint Of The Distribution Phase A4
- 0.2896513664663761, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 1.6723075999539139, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 4 042 kg CO2 eq., 4041.938244045323
- Local Data Status
- Publishable
- Return Indicator
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1406012EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Component Name
- LXM62
- Derating Altitude Scale
- 80.0 m
- Derating Temperature Scale
- 70.0 °C
- Device Short Name
- LXM 62
- Maximum Operational Altitude
- 3000.0 m
- Nominal Power
- 4.3 kW
- Phase
- three phase
- Product Or Component Type
- double drive
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Tightening Torque
- CN1 2.5-2.5 N.m
- Vibration Resistance
- 10 m/s² conforming to IEC 60721-3-3
- Warranty In Months
- 18
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor the position of a servo motor with 80% use rate at 119 W in industrial environment during 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 8339.52
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 310 mm
Persona Type NamesEnd User, Original Equipment Manufacturer
Nominal Voltage230 V three phase, 400 V three phase
Supply Voltage208-360 V three phase, 380-480 V three phase
Carbon Footprint Of The End Of Life Phase C1 To C47 kg CO2 eq., 6.590242713877876
Carbon Footprint Of The Manufacturing Phase A1 To A3589 kg CO2 eq., 589.2288903538903
Certificate AgencyCSA, EAC, CE, TÜV, UL
Local Publishable Date2026-01-12
Stocking FlagY
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Continuous Power4.3 kW
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Environmental Characteristic3K3 conforming to IEC 60721-3-3
Minimum Ambient Air Temperature For Operation5.0 °C
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPacDrive 3
Shock Resistance100 m/s² IEC 60721-3-3
Supply Frequency50/60 Hz - 5...5 %
Switching Frequency8 kHz
Total Lifecycle Carbon Footprint4 640 kg CO2 eq.
Maximum In Rated Current9.0 A
Pep CodeENVPEP1406012EN
Pep Verification Date2025-08-28
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity origin
Recyclability Potential, In %57
Width Nominal44.5 mm
Environment Attributes Main
- Product Compatibility
- servo motor SHS, servo motor SH3 100 mm, 3 optimized in terms of torque and speed, servo motor SH3 100 mm, 4 optimized in terms of torque and speed, servo motor SH3 140 mm, 1 optimized in terms of torque and speed, servo motor MH3 100 mm, 2 optimized in terms of torque and speed
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 5-55 °C
- Environmental Disclosure
- ENVPEP1406012EN
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-85 %
- Pep Verification Date
- 2025-08-28
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Take BackNo
China Rohs RegulationX
Carbon Footprint4639.719336079512
Circularity ProfileENVEOLI1406012EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1406012EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- three phase
- Range Of Product
- PacDrive 3
Product Or Component Typedouble drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Output Current 3s Peak
- 27 A 4 kHz, 27.0 A
- Discrete Output Voltage
- 24 V DC
Continuous Output Current9 A 4 kHz
Number Of Outputs2 digital
Input Attributes
- Number Of Inputs
- 2 digital, 2 touch probe
Discrete Input Voltage24 V DC for - 20...25 %
