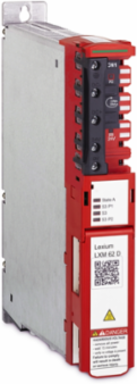

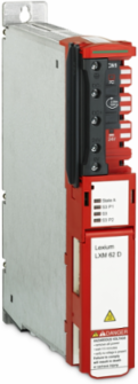

Schneider Electric LXM62DD15E21000 Lexium 62 Single Drive 15A Emb. Safety - accessory kit included
Schneider Electric LXM62DD15E21000 Lexium 62 Single Drive 15A Emb. Safety - accessory kit included
- MPN: LXM62DD15E21000
- PPN: SCH-LXM62DD15E21000
- UNSPSC: 39121021
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4163.31/ EA
Description
Lexium 62 Single Drive 15A Emb. Safety - accessory kit included
Specifications
Communications & Management Attributes
- Communication Interface
- SERCOS III, Integrated
Conformance Attributes
- Product Certifications
- TÜV, EAC, CSA, UL, CE
StandardsIEC 61800-5-2, IEC 61800-5-1, IEC 61800-3, ISO 13849-1, UL 508C, IEC 61508, IEC 62061, ISO 13849-2, CSA C22.2 No 14
Complementary Attributes
- Line Rated Current
- 5.0 A
- Maximum Current IRMS
- 15.0 A
- Minimum Ambient Air Temperature For Operation
- 5.0 °C
Maximum Ambient Air Temperature For Operation55.0 °C
Maximum Operational Altitude3000.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Electrical Connection
- terminal 0.2...15 mm², AWG 24...AWG 16 CN4), terminal 0.5...16 mm², AWG 20...AWG 6 CN5), terminal 0.75...16 mm², AWG 18...AWG 6 CN6), terminal 0.2...6 mm², AWG 24...AWG 10 CN7)
- Safety Function
- STO (safe torque off), SS1 (safe stop 1), SS2 (safe stop 2), SOS (safe operating stop), SMS (safe maximum speed), SLS (safe limited speed), SDI (safe direction indication)
- Us Rated Supply Voltage2
- 400 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)single phase, 230 V
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 6 kg CO2 eq., 6.403928621641648
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 573 kg CO2 eq., 572.5706805440354
- Us Rated Supply Voltage5
- 400 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)single phase
- Local Publishable Date
- 2026-01-12
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Continuous Power
- 2.4 kW
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Environmental Characteristic
- 3K3 conforming to IEC 60721-3-3
- Minimum Ambient Air Temperature For Operation
- 5.0 °C
- Overvoltage Category
- III
- Phase
- three phase
- Product Or Component Type
- single drive
- Returnability
- Yes
- Supply Frequency
- 50/60 Hz - 5...5 %
- Switching Frequency
- 8 kHz
- Total Lifecycle Carbon Footprint
- 4 623 kg CO2 eq.
- Maximum In Rated Current2
- 5.0 A
- Stocking Flag
- Y
- Pep Code
- ENVPEP1406012EN
- Pep Verification Date
- 2025-08-28
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Maximum In Rated Current5
- 5.0 A
Persona Type NamesEnd User, Original Equipment Manufacturer
Nominal Voltage230 V three phase, 400 V three phase
Supply Voltage208-360 V three phase, 380-480 V three phase
Carbon Footprint Of The Distribution Phase A40.28146257376917805, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A51.6250294516439832, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B64 042 kg CO2 eq., 4041.938244045323
Local Data StatusPublishable
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1406012EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Component NameLXM62
Derating Altitude Scale80.0 m
Derating Temperature Scale70.0 °C
Device Short NameLXM 62
Maximum Operational Altitude3000.0 m
Nominal Power2.4 kW
Package Weight Lbs3.884 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPacDrive 3
Shock Resistance100 m/s² IEC 60721-3-3
Sustainable PackagingNo
Tightening TorqueCN1 2.5-2.5 N.m
Vibration Resistance10 m/s² conforming to IEC 60721-3-3
Medium DescLexium 62 Single Drive 15A Emb. Safety - accessory kit included
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionTo monitor the position of a servo motor with 80% use rate at 119 W in industrial environment during 10 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; France, FR
Energy Model Use B6 2Electricity origin
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- Product Compatibility
- servo motor SH3 100 mm, 2 optimized in terms of torque and speed, servo motor SH3 100 mm, 3 optimized in terms of high torque, servo motor MH3 70 mm, 3 optimized in terms of torque and speed, servo motor MH3 100 mm, 1 optimized in terms of torque and speed, servo motor SHS, servo motor SH3 70 mm, 2 optimized in terms of torque and speed, servo motor SH3 70 mm, 3 optimized in terms of torque and speed, servo motor SH3 100 mm, 1 optimized in terms of torque and speed, servo motor SH3 100 mm, 2 optimized in terms of high torque, servo motor SH3 140 mm, 1 optimized in terms of high torque, servo motor MH3 70 mm, 2 optimized in terms of torque and speed
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 5-55 °C
- Environmental Disclosure
- ENVPEP1406012EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1406012EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Carbon Footprint4622.819345236413
Circularity ProfileENVEOLI1406012EN
IP Degree Of ProtectionIP20 IEC 60529
Packaging Without Single Use PlasticNo
Relative Humidity5-85 %
Pep Verification Date2025-08-28
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Phase
- three phase
- Range Of Product
- PacDrive 3
Product Or Component Typesingle drive
Output Attributes
- Output Current 3s Peak
- 15 A 4 kHz, 15.0 A
- Discrete Output Voltage
- 24 V DC
Continuous Output Current5 A 4 kHz
Number Of Outputs2 digital
Input Attributes
- Number Of Inputs
- 2 digital, 2 touch probe
Discrete Input Voltage24 V DC for - 20...25 %
Specifications
- Depth
- 270 mm
