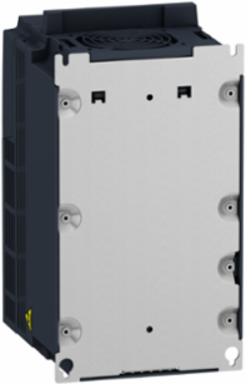

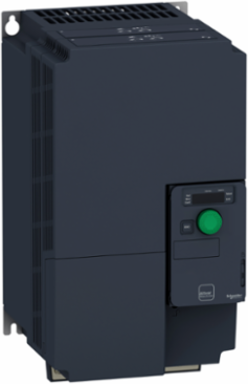

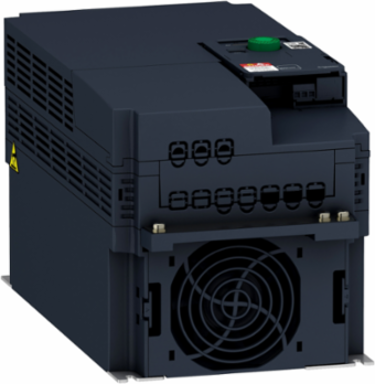

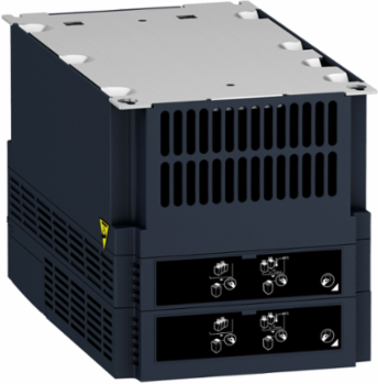

Schneider Electric ATV320D11S6C Variable Speed Drive 11 kW, 525-600V, Compact, 6.5 kg

  • MPN: ATV320D11S6C
  • PPN: SCH-ATV320D11S6C
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2391.37

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

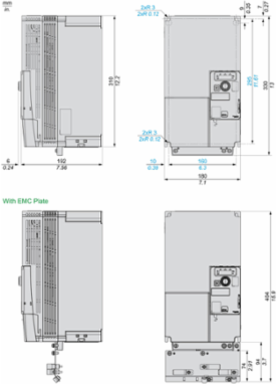

    Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 11kW / 15hp and a rated voltage from 525V to 600V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 6.5kg and its dimensions are 180mm wide, 330mm high, 198mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

    Features

    • Measuring only 180mm wide, the Altivar Machine ATV320 "Book" design is engineered for side-by-side mounting without clearance gaps, saving significant DIN rail or backplate real estate. This allows industrial engineers to downsize enclosure footprints and reduce total hardware costs while maintaining high-density automation control.
    • Specifically designed for 525V to 600V three-phase supplies, the ATV320D11S6C eliminates the need for expensive step-down transformers in 600V industrial environments. This 15 HP (11 kW) rated drive provides a direct, efficient solution for Canadian and US heavy-industrial applications where high-line voltage is the standard.
    • This VFD comes standard with five embedded safety functions, including Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely Limited Speed (SLS). By integrating these safety features directly into the drive logic, you reduce the need for external safety relays, simplifying your machine's safety architecture while ensuring full compliance with EN/ISO 13849-1.
    • With built-in Modbus and CANopen protocols, plus a wide array of optional communication modules (EtherNet/IP, Profinet, EtherCAT), the ATV320 integrates effortlessly into any EcoStruxure or third-party automation architecture. This connectivity allows for real-time diagnostics and predictive maintenance, giving operators instant visibility into motor performance and system health.

    Documentation & Downloads

    Specifications

    Key Specifications

    Variant
    standard version
    Product Or Component Type
    variable speed drive
    Communication Port Protocol
    Modbus serial || CANopen
    Product Specific Application
    complex machines
    Range Of Product
    Altivar Machine ATV320
    [Us] Rated Supply Voltage
    525...600 V - 15...10 %
    Emc Filter
    without EMC filter
    Format Of The Drivecompact
    Ip Degree Of ProtectionIP20
    Nominal Output Current17.0 A
    Option Cardcommunication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, DeviceNet
    Motor Power Kw11 kW heavy duty
    Mounting Modewall mount

    Complementary

    Prospective Line Isc
    22 kA
    Power Dissipation In W
    fan 267.0 W 525 V 4 kHz
    Analogue Output Type
    software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
    Asynchronous Motor Control Profile
    voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
    4 Quadrant Operation Possible
    true
    Apparent Power
    14.7 kVA 600 V heavy duty)
    With Safety Function Safe Direction (Sdi)
    false
    Switching Frequency
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Motor Slip Compensation
    automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
    With Safety Function Safe Position (Sp)
    false
    With Safety Function Safely Limited Position (Slp)
    false
    Discrete Input Number
    7
    With Safety Function Safe Stop 1 (Ss1)
    true
    Depth
    198.0 mm
    Maximum Output Frequency
    0.599 kHz
    Height
    330 mm
    Maximum Output Voltage
    600 V
    With Safety Function Safe Speed Monitor (Ssm)
    false
    With Safety Function Safe Torque Off (Sto)
    true
    Minimum Switching Current
    relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
    With Safety Function Safe Programmable Logic
    false
    Nominal Switching Frequency
    4 kHz
    Discrete Input Type
    STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
    With Safety Function Safely Limited Speed (Sls)
    true
    Network Frequency50...60 Hz
    Line Current15.8 A 525 V heavy duty) || 14.1 A 600 V heavy duty)
    Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
    Maximum Switching Currentrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC || relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
    Relative Symmetric Network Frequency Tolerance5 %
    Net Weight6.5 kg
    Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
    Analogue Input Number3
    Discrete Output Number3
    Method Of Accessslave CANopen
    With Safety Function Safe Operating Stop (Sos)false
    With Sft Fct Safe Stop 2 (Ss2)false
    Width180 mm
    Analogue Input TypeAI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
    With Safety Function Safe Brake Management (Sbc/Sbt)false
    Acceleration And Deceleration Rampslinear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
    Base Load Current At High Overload6.9 A
    Transient Overtorque170-200 % of nominal motor torque
    Analogue Output Number1
    Discrete Input Logicpositive logic (source) || negative logic (sink)
    Brake Chopper Integratedtrue
    Braking To Standstillby DC injection
    Protection Typeinput phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
    Synchronous Motor Control Profilevector control without sensor

    Offer Sustainability

    Mercury Free
    Yes
    Weee
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Upgradeability
    Upgraded components available
    Environmental Disclosure
    ENVPEP2311022
    Circularity Profile
    ENVEOLI2311022
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    China Rohs RegulationX
    Rohs Exemption InformationYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Environment

    Product Certifications
    CE || ATEX || NOM || GOST || EAC || RCM || KC
    Standards
    IEC 61800-5-1
    Permitted Relative Humidity (During Operation)
    class 3K5 according to EN 60721-3
    Environmental Class (During Operation)
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Pollution Degree
    2
    Ambient Air Temperature For Operation
    -10-50 °C without derating || 50-60 °C with derating factor
    Marking
    CE || ATEX || UL || CSA || EAC || RCM
    Ambient Air Temperature For Storage
    -25-70 °C
    Ambient Air Transport Temperature
    -25-70 °C
    Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
    Regulation Loopadjustable PID regulator
    Overvoltage CategoryIII
    Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test IEC 61000-4-11
    Volume Of Cooling Air156.0 m3/h
    Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
    Operating Positionvertical +/- 10 degree
    Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
