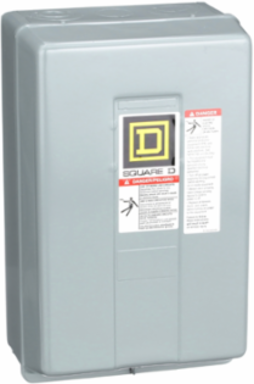

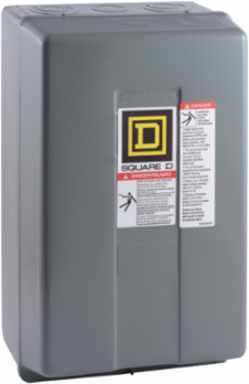

Square D 8903LG1200V02 30A 12-Pole Lighting Contactor, 600V, 110/120VAC Coil
Square D 8903LG1200V02 30A 12-Pole Lighting Contactor, 600V, 110/120VAC Coil
- MPN: 8903LG1200V02
- UPC: 785901851615
- PPN: SCH-8903LG1200V02
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2714.63/ EA
Description
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 12 pole device has 12 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Specifications
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Circularity ProfileN/A
Halogen Content PerformanceHalogen free plastic parts product
Complementary
- Height
- 322 mm
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Inrush Power In Va
- 180-180 VA 60 Hz || 170-170 VA 50 Hz
- Hold-In Power Consumption In Va
- 35-35 VA 60 Hz || 35-35 VA 50 Hz
- Width
- 198 mm
- [In] Rated Current
- 20-20 A tungsten || 30-30 A fluorescent
Control Typeno control units
Net Weight4.99 kg
Local Signallingno indicator
Electrical Connectionscrew-clamp terminals
Depth153 mm
Poles Description12P 12 NO
Specifications
- Range Of Product
- 8903L
- Control Circuit
- separate control circuit
Product Or Component TypeElectrically Held Lighting Contactor
