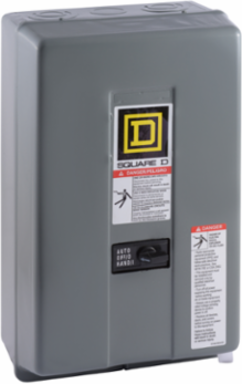

Square D 8903LXG1200V02CR6 Mechanical Lighting Contactor 12 Pole, 30A, 600V NEMA 1
Square D 8903LXG1200V02CR6 Mechanical Lighting Contactor 12 Pole, 30A, 600V NEMA 1
- MPN: 8903LXG1200V02CR6
- UPC: 785901023180
- PPN: SCH-8903LXG1200V02CR6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4543.03/ EA
Description
Mechanical Lighting Contactor 12 Pole, 30A, 600V NEMA 1
Specifications
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Complementary
- Local Signalling
- no indicator
- Control Type
- selector switch HAND-OFF-AUTO)
- Electrical Connection
- screw-clamp terminals
- Depth
- 153 mm
- Inrush Power In Va
- 180-180 VA 60 Hz || 170-170 VA 50 Hz || 25-25 VA 50/60 Hz
- Additional Included Device
- 2P relay (1 NO + 1 NC)
Height322 mm
[Uc] Control Circuit Voltage110 V AC 50 Hz || 120 V AC 60 Hz
Width198 mm
[In] Rated Current20-20 A tungsten || 30-30 A fluorescent
Poles Description12P 12 NO
Specifications
- Range Of Product
- 8903LX
- Product Or Component Type
- Mechanically Held Lighting Contactor
Control Circuitseparate control circuit
