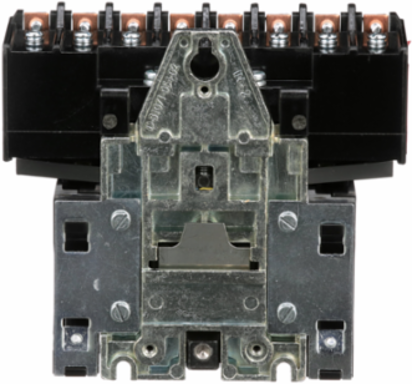

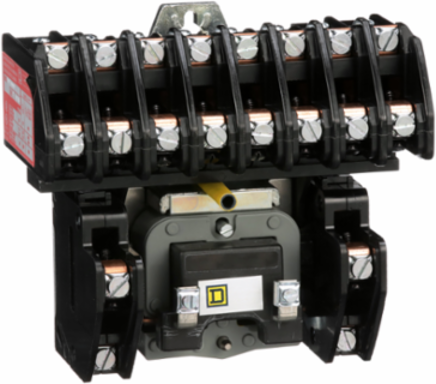

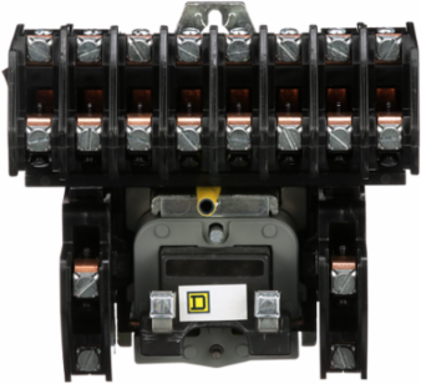

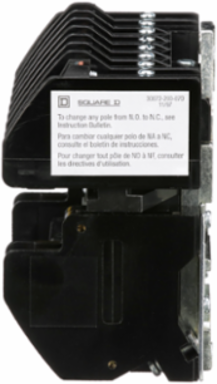

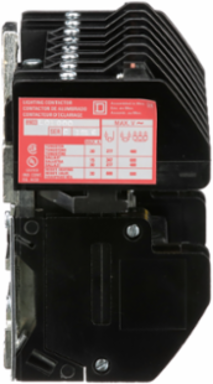

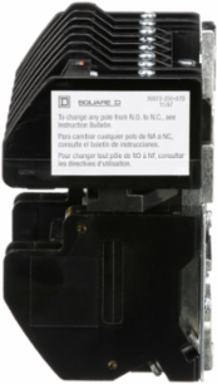

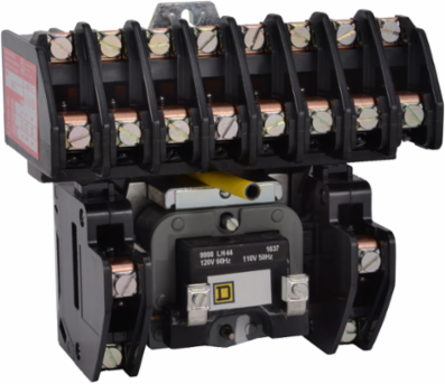

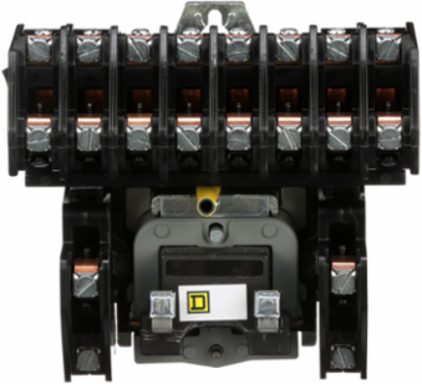

Square D 8903LO0010V02 Lighting Contactor 10 Pole 30A 600V 110/120VAC Open Style
- MPN: 8903LO0010V02
- UPC: 785901843474
- PPN: SCH-8903LO0010V02
CAD
$2218.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
With robust engineering at its core, this lighting contactor from Schneider Electric is designed to handle up to 30 amperes at 600 volts, making it a reliable choice for a variety of automation and control applications. The open style design enhances accessibility for wiring and maintenance, while the 10-pole configuration allows for efficient management of complex lighting systems. Ideal for both commercial and industrial settings, this contactor ensures optimal performance and longevity in demanding environments, effectively meeting the needs of modern electrical infrastructures.
Documentation & Downloads
Specifications
Additional
- Control Circuit Voltage
- 110 V AC 50 Hz, 120 V AC 60 Hz
- Inrush Power
- 180 VA 60 Hz, 170 VA 50 Hz
- Poles Description
- 10P 10 NC
- Amperage
- 30 A
- Height
- 127 mm (5.00 in)
- Depth
- 79 mm (3.11 in)
- Product Type
- Electrically Held Lighting Contactor
- Compliance
- UL Listed, CSA, RoHS Compliant
- PVC Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts
- REACH Regulation
- Free of SVHC above threshold
- Warranty
- 18 months
Hold-in Power Consumption35 VA 50/60 Hz
Current Rating20 A tungsten, 30 A fluorescent
Voltage600 V
Electrical ConnectionScrew-clamp terminals
Width143 mm (5.63 in)
Enclosure TypeNot rated (open device)
Range of Product8903L
Toxic Heavy Metal FreeYes
Mercury FreeYes
China RoHS DeclarationPro-active, out of legal scope
RoHS Exemption InformationYes
