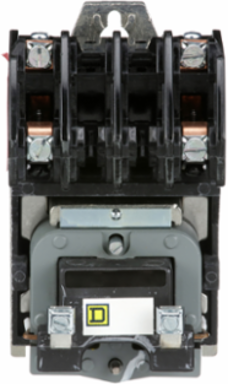

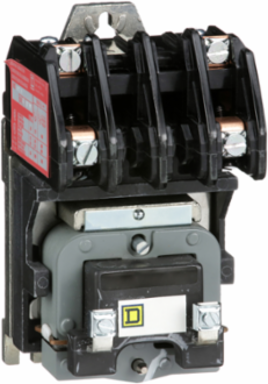

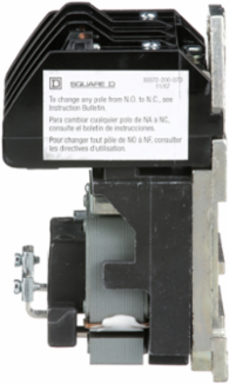

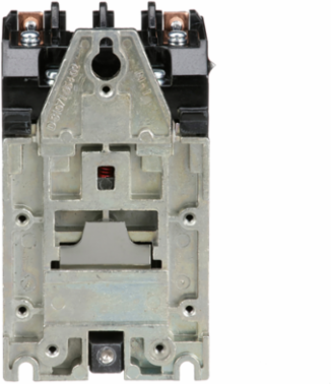

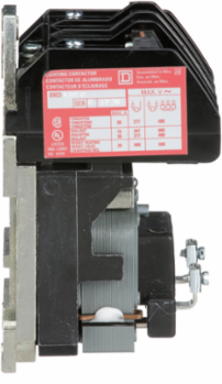

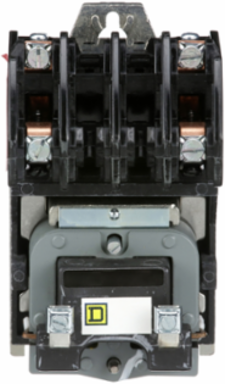

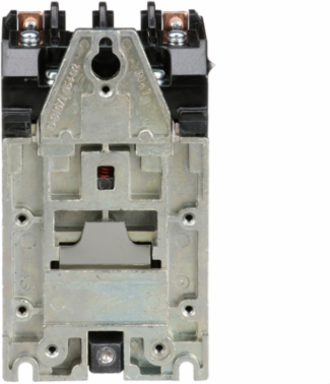

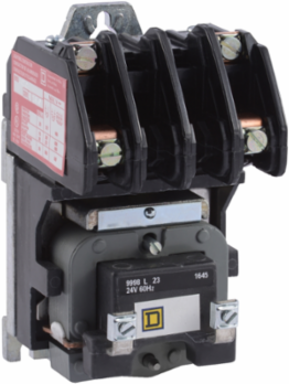

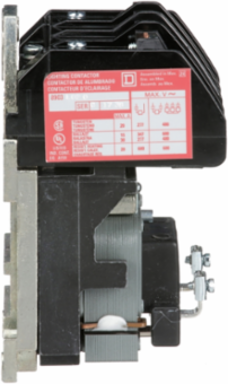

Square D 8903LO20V03 Electrically Held Lighting Contactor, 30A, 2 Pole, 600V, Open Style
Square D 8903LO20V03 Electrically Held Lighting Contactor, 30A, 2 Pole, 600V, Open Style
- MPN: 8903LO20V03
- UPC: 785901022954
- PPN: SCH-8903LO20V03
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$852.02/ EA
Description
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 2 pole device has 2 NO contacts. Supplied with a 220/240 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 2.88 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Specifications
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Complementary
- Local Signalling
- no indicator
- Control Type
- no control units
- Hold-In Power Consumption In Va
- 30-30 VA 60 Hz || 30-30 VA 50 Hz
- Width
- 73 mm
- [In] Rated Current
- 20-20 A tungsten || 30-30 A fluorescent
- Poles Description
- 2P 2 NO
Height127 mm
[Uc] Control Circuit Voltage220 V AC 50 Hz || 240 V AC 60 Hz
Electrical Connectionscrew-clamp terminals
Depth79 mm
Inrush Power In Va150-150 VA 60 Hz || 140-140 VA 50 Hz
Specifications
- Range Of Product
- 8903L
- Product Or Component Type
- Electrically Held Lighting Contactor
Control Circuitseparate control circuit
