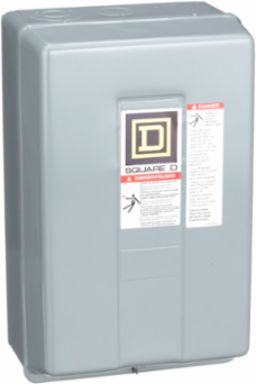

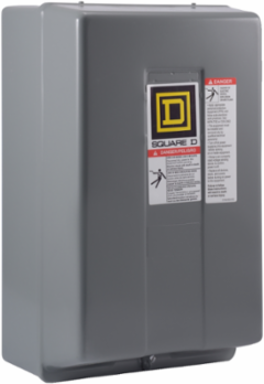

Square D 8903LXG1000V02 Mechanically Held Lighting Contactor 10 Pole 30A 600V NEMA 1
Square D 8903LXG1000V02 Mechanically Held Lighting Contactor 10 Pole 30A 600V NEMA 1
- MPN: 8903LXG1000V02
- UPC: 785901057444
- PPN: SCH-8903LXG1000V02
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2543.60/ EA
Description
Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 10 pole device has 10 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type L lighting contactors. 8903L lighting contactors are UL Listed and CSA Certified.
Specifications
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Complementary
- Local Signalling
- no indicator
- Control Type
- no control units
- Electrical Connection
- screw-clamp terminals
- Depth
- 153 mm
- Inrush Power In Va
- 180-180 VA 60 Hz || 170-170 VA 50 Hz || 25-25 VA 50/60 Hz
- Additional Included Device
- none
Height322 mm
[Uc] Control Circuit Voltage110 V AC 50 Hz || 120 V AC 60 Hz
Width198 mm
[In] Rated Current20-20 A tungsten || 30-30 A fluorescent
Poles Description10P 10 NO
Specifications
- Range Of Product
- 8903LX
- Product Or Component Type
- Mechanically Held Lighting Contactor
Control Circuitseparate control circuit
