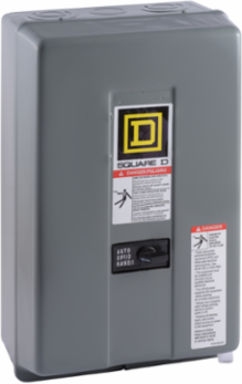

Square D 8903LXG40V02CR6 Type L Lighting Contactor 30A 4 Pole 600V 110/120V AC NEMA 1
Square D 8903LXG40V02CR6 Type L Lighting Contactor 30A 4 Pole 600V 110/120V AC NEMA 1
- MPN: 8903LXG40V02CR6
- UPC: 785901023272
- PPN: SCH-8903LXG40V02CR6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2811.02/ EA
Description
Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 4 pole device has 4 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type L lighting contactors. This lighting contactor is supplied with a HAND/OFF/AUTO selector switch and an additional two pole relay. 8903L lighting contactors are UL Listed and CSA Certified.
Specifications
Environment
- Product Certifications
- UL listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Complementary
- Local Signalling
- no indicator
- Control Type
- selector switch HAND-OFF-AUTO)
- Electrical Connection
- screw-clamp terminals
- Depth
- 153 mm
- Inrush Power In Va
- 150-150 VA 60 Hz || 140-140 VA 50 Hz || 25-25 VA 50/60 Hz
- Additional Included Device
- 2P relay (1 NO + 1 NC)
Height322 mm
[Uc] Control Circuit Voltage110 V AC 50 Hz || 120 V AC 60 Hz
Width198 mm
[In] Rated Current20-20 A tungsten || 30-30 A fluorescent
Poles Description4P 4 NO
Specifications
- Range Of Product
- 8903LX
- Product Or Component Type
- Mechanically Held Lighting Contactor
Control Circuitseparate control circuit
