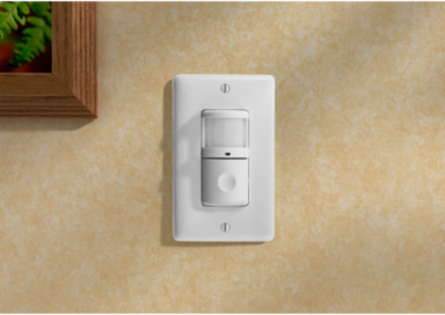

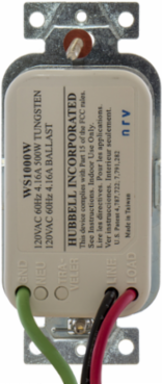

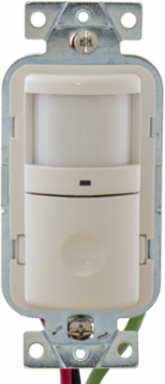

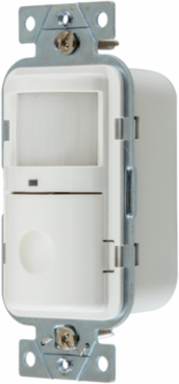

Hubbell Wiring Device-Kellems WS1000W Wall Switch Occupancy Sensor, Passive Infrared, 120V AC, 500 Watt, 4.15 Inch x 1.82 Inch x 1.62 Inch, White
- MPN: WS1000W
- UPC: 783585256221
- PPN: HBL-WS1000W
- UNSPSC: 39122236
CAD
$97.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Lighting Controls, Vacancy/Occupancy Sensors, Wall Switch, Passive Infrared Technology, Single Circuit, 120V AC, 500 Watt, White
Features
- No Neutral
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- WS1000W AutoCAD Drawing
- General Literature Asset 3 Display Text
- Load Control Application Guide
- Dimensions
- 4.15 in x 1.82 in x 1.62 in
- Humidity
- 20% to 90% non-condensing relative humidity
- Length
- 4.15 in
- Standards - RoHS Compliance Status
- CM
- Application
- Compatible with most LED and CFL
- Operating Temperature
- 32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
- Standard
- cULus Listed To UL773A
- Voltage Rating
- 120 VAC
- Width
- 1.82 in
- Coverage
- 1200 ft²
- Description - Invoice
- OCC SENSOR,PIR,120V 500W,WH
- Harmonization Code
- 8536509999
- MSDS Flag
- No
- Sub Class Code
- A48A450
- Photocell
- Yes
- Material
- ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585256220
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 2 Display TextDevices meeting 2021 and 2024 IECC standards
Country of OriginTaiwan
Height1.62 in
Industry Standard(s)cULus Listed To UL773A
PerformanceControls - Front Press Switch - ON/OFF;Controls - Service Switch - OFF (service), ON (normal operation);Controls - Time Delay - Manual 20 seconds to 30 minutes;Electrical - Load Capacity -120VAC 600W Incandescent, 5A Ballast, 5A CFL/LED 277V, Horsepower rating 1/6;Environmental - Operating Temperature - 32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour;Environmental - Storage - -40°F to 150°F (-40°C to 65°C), 20% to 90% non condensing relative humidity;Sensing Indicators - Passive Infrared - Red LED
Storage Temperature Range-40°F to 150°F (-40°C to 65°C)
ColorWhite
Size4.15 in x 1.82 in x 1.62 in
TypeManual/Auto
Voltage Rating Description120V AC
General Literature Asset 1 Display TextResidential Catalog
Class CodeA48
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberWS120W
Mounting Height3.5-4.5 ft
Indicator(s) TypePIR= Red LED
SeriesPassive Infrared
BOX SIZE3.600x11.800x10.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585256221
Case Weight16.667 lb.
Lowest Level UOMEach
Pallet Height39.300 in
Pallet Weight531.900 lb.
NAICS Code3359315102
Certifications
- EU RoHS Indicator
- No
