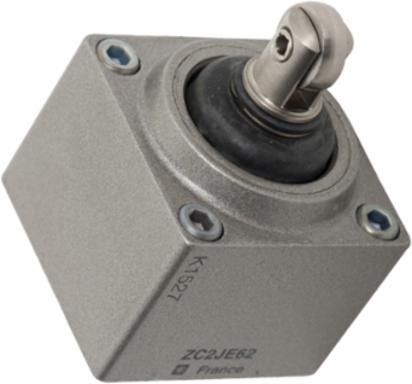

Telemecanique Sensors ZC2JE62 Limit switch head, Limit switches XC Standard, ZC2J, steel roller plunger
- MPN: ZC2JE62
- PPN: TES-ZC2JE62
- UNSPSC: 39122213
CAD
$78.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XC Special range, an offer of limit switches. This limit switch head provides switch actuation by 30° cam without positive opening operation. The spring return metal roller plunger and supports lateral approach in 2 directions. The movement of limit switch operating head is linear. The limit switch head is made of metal. It weighs 0.2kg. It is compatible with XC2J series limit switches. Its associated bodies are ZC2JD1, ZC2JC1, ZC2JC28, ZC2JD2, ZC2JC2 and ZC2JC18. Special format limit switches for severe environments.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | roller plunger spring return metal |
| Associated Body | ZC2JD1 || ZC2JC1 || ZC2JC28 || ZC2JD2 || ZC2JC2 || ZC2JC18 |
| Device Short Name | ZC2J |
| Series Name | special format |
|---|---|
| Range Of Product | OsiSense XC |
| Product Or Component Type | limit switch head |
| Product Compatibility | XC2J |
| Head Type | plunger head |
Complementary
| Switch Actuation | by 30° cam |
|---|---|
| Head Material | metal |
| Positive Opening | without |
|---|---|
| Net Weight | 0.2 kg |
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
