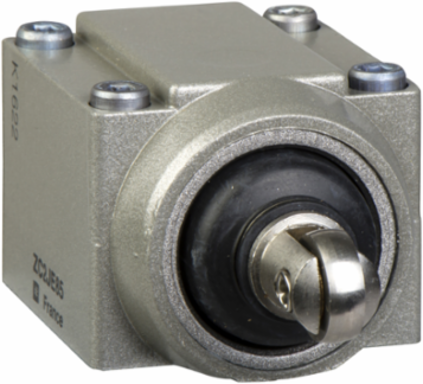

Telemecanique Sensors ZC2JE85 Limit switch head, Limit switches XC Standard, ZC2J, side steel roller plunger vertical
- MPN: ZC2JE85
- PPN: TES-ZC2JE85
- UNSPSC: 39122213
CAD
$91.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, ZC2J, side steel roller plunger vertical
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | vertical approach, 2 directions |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | side roller plunger spring return metal with vertical roller) |
| Associated Body | ZC2JC4 || ZC2JD4 || ZC2JC48 |
| Device Short Name | ZC2J |
| Series Name | special format |
|---|---|
| Range Of Product | OsiSense XC |
| Product Or Component Type | limit switch head |
| Product Compatibility | XC2J |
| Head Type | plunger head |
Complementary
| Switch Actuation | by 30° cam |
|---|---|
| Head Material | metal |
| Positive Opening | without |
|---|---|
| Net Weight | 0.245 kg |
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
