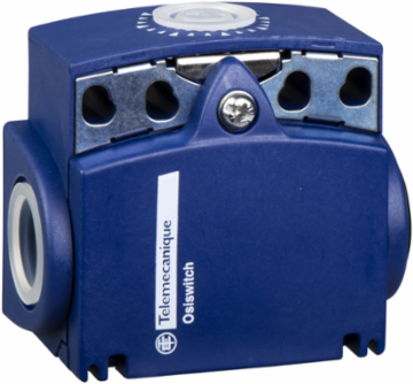

Telemecanique Sensors ZCT28N12 Limit switch body, Limit switches XC Standard, ZCT, compact, 2 NO, slow break, 1/2"NPT
- MPN: ZCT28N12
- PPN: TES-ZCT28N12
- UNSPSC: 39122213
CAD
$62.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Limit switch body, Limit switches XC Standard, ZCT, compact, 2 NO, slow break, 1/2"NPT
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch body
- Series Name
- Standard compact
- Body Type
- fixed
- Body Material
- plastic
- Number Of Poles
- 2
Associated HeadZCE08 || ZCE29 || ZCE05 || ZCE01 || ZCE07 || ZCE66 || ZCE21 || ZCE63 || ZCE24 || ZCE28 || ZCE64 || ZCE11 || ZCE06 || ZCE62 || ZCE14 || ZCEH2 || ZCE10 || ZCE13 || ZCE67 || ZCE02 || ZCEH0 || ZCE65 || ZCE27
Designcompact
Contacts Type And Composition2 NO
Contact Operationslow-break, simultaneous
Device Short NameZCT
Complementary
- Height
- 51-51 mm
- Minimum Actuation Speed
- 6 m/s
- Contacts Material
- silver plated contacts
- Net Weight
- 0.085 kg
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- without
- Contact Code Designation
- B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- Depth
- 30 mm
Short-Circuit Protection10 A cartridge fuse gG
Electrical Connectionscrew-clamp terminals 1 x 0.5...2 x 2.5 mm²
Cable Entry2 entries tapped for 1/2" NPT adaptor 4-8 mm
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Contacts Insulation FormZb
Width58 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Compatibility
- XCKT
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110606EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110603EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
