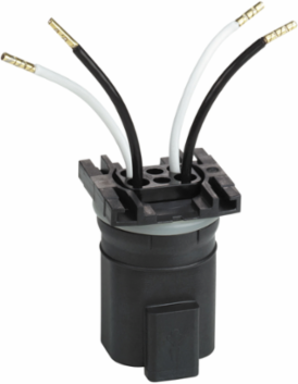

Telemecanique Sensors ZCP21D44 Limit switch body, Limit switches XC Standard, ZCP, compact, 1NC+1 NO, snap action, DEUTSCH
- MPN: ZCP21D44
- PPN: TES-ZCP21D44
CAD
$59.62
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body, Limit switches XC Standard, ZCP, compact, 1NC+1 NO, snap action, DEUTSCH
Documentation & Downloads
Specifications
Key Specifications
| Series Name | Standard compact |
|---|---|
| Body Type | fixed |
| Contact Operation | snap action |
| Body Material | plastic |
| Design | compact |
| Contacts Type And Composition | 1 NC + 1 NO |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Associated Head | ZCE29 || ZCE02 || ZCE62 || ZCEH2 || ZCE01 || ZCE07 || ZCE08 || ZCE24 || ZCE10 || ZCE21 || ZCEH0 || ZCE67 || ZCE66 || ZCE64 || ZCE06 || ZCE14 || ZCE05 || ZCE11 || ZCE28 || ZCE09 || ZCE65 || ZCE27 || ZCE13 || ZCE63 |
| Product Or Component Type | limit switch body |
| Device Short Name | ZCP |
Complementary
| Height | 65-65 mm |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Positive Opening | with |
| Contacts Insulation Form | Zb |
| Contacts Material | silver plated contacts |
| Width | 31 mm |
| Net Weight | 0.07 kg |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
|---|---|
| [Ui] Rated Insulation Voltage | 400 V 3)IEC 60947-1 |
| Minimum Actuation Speed | 0.01 m/s |
| Electrical Connection | DEUTSCH connector DT04-4P, 4 pins |
| Contact Code Designation | B150, AC-15 (Ue = 120 V), Ie = 3 A 5 A EN/IEC 60947-5-1 appendix A || Q150, DC-13 (Ue = 125 V), Ie = 0.55 A EN/IEC 60947-5-1 |
| Depth | 30 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60664 || 4 kV IEC 60947-1 |
Environment
| Ambient Air Temperature For Storage | -40-70 °C |
|---|---|
| Product Compatibility | XCKP |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI110603EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110606EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
