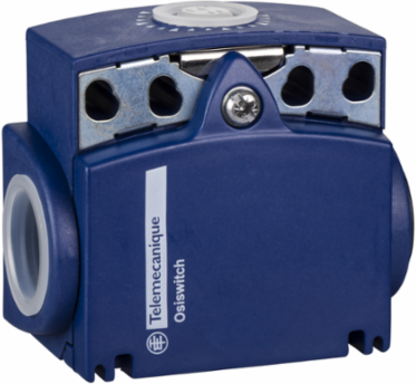

Telemecanique Sensors ZCT27N12 Limit switch body ZCT, compact, 2NC, slow action, terminal connection, 1/2" NPT cable entry
- MPN: ZCT27N12
- PPN: TES-ZCT27N12
CAD
$68.02
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body ZCT, compact, 2NC, slow action, terminal connection, 1/2" NPT cable entry
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
|---|---|
| Contacts insulation form | Zb |
| Positive opening | With |
| Cable entry | 2 entries tapped for 1/2" NPT adaptor, cable outer diameter: 4-8 mm |
|---|---|
| Contacts material | Silver plated contacts |
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch body |
| Design | Compact |
| Body material | Plastic |
| Contact operation | Slow-break, simultaneous |
| Series name | Standard compact |
|---|---|
| Device short name | ZCT |
| Body type | Fixed |
| Contacts type and composition | 2 NC |
Environment
| Product compatibility | XCKT |
|---|
